SPLASH12 Side Bending RGBW Colour Changing LED | IP67 | 24v | 2700K
Accessories

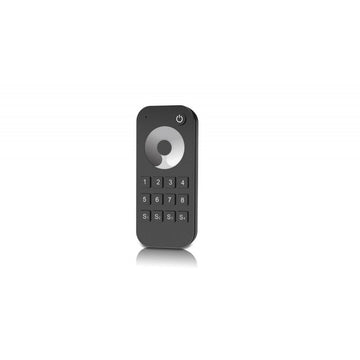

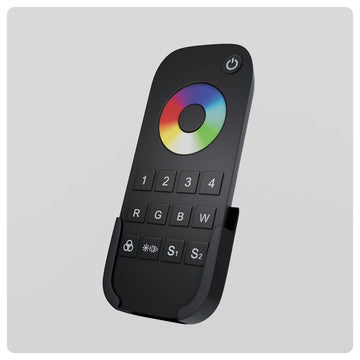

Now add your control system and mounting options
And finally, your power supply
Select your power supply based on LED strip length
| Upto 6 Metres | Upto 15 Metres | Upto 20 Metres |
|---|---|---|
| 100w 24v Power Supply IP67 | Meanwell LED Power Supply | 240w 24V IP67 | Meanwell LED Power Supply | 320w 24V IP67 |
-
Superior Performance: Designed for seamless indoor and outdoor lighting applications.
-
Even Illumination: Continuous light spread, no spots, no need for a diffuser.
-
Colour Changing Flexibility: RGBW strip with a broader palette for better colour control.
-
Innovative Design: Eco-friendly, side-bend housing for creating tight arcs.
-
Resilient and Safe: IP67 rated, resistant to dust, water, flame, and UV yellowing.
-
Easy to Install: Accompanied by specially designed mounting options.
-
Fully Compatible: Operates with all LEDSpace controls.
-
Reliable and Certified: CE/UKCA approved and supported by a 5-year warranty for a confident purchase.
- Fully Customisable Neon Flex alternative.
Our new waterproof SPLASH12 LED range is made using the latest manufacturing techniques. It is ideal for indoor or outdoor decorative and architectural applications from kitchens and bathrooms to driveways, patios and pool surrounds.
SPLASH12 LED strip gives a continuous even light along the whole length of the strip. This means no spots – and no diffuser is required.
The SPLASH12S colour-changing RGBW LED strip adds a true white chip to RGB, giving better colour control, more pastel colours and a much wider palette, as well as true white light capability. The results are much greater subtlety and more effective light.

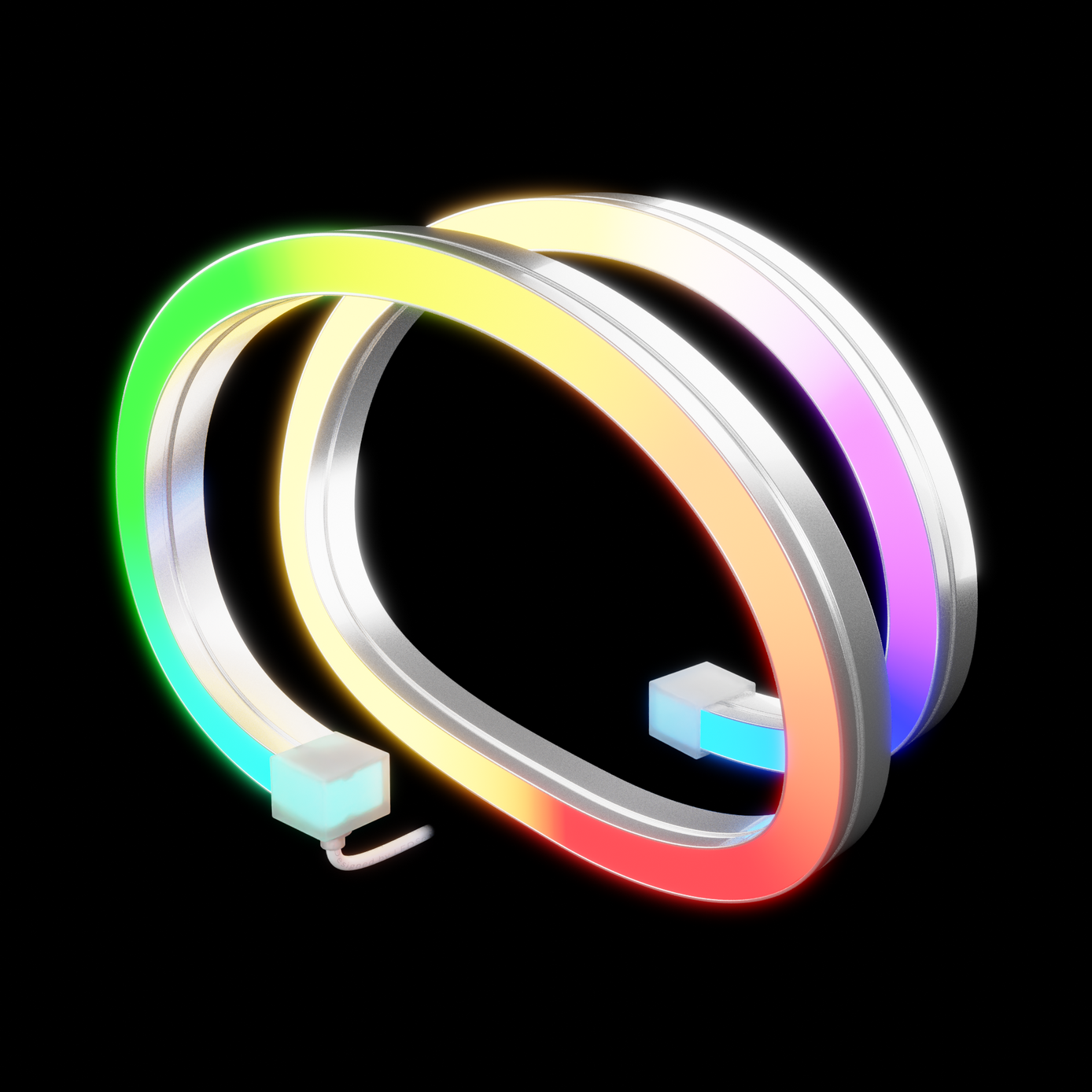

The integrated eco-friendly silicone side-bend housing is laterally flexible and will easily bend sideways to create an arc with a radius that can be as tight as 60mm (see diagram).
The silicone housing gives the SPLASH12 range an IP67 rating, meaning no dust ingress, plus protection against temporary water immersion (up to 1 metre deep). The waterproof silicone extrusion is flame retardant and resistant to salt solutions, acid and alkali corrosion and UV yellowing.
Our range of specially designed mounting options includes a rigid channel, flexi channel and U-clips.
The SPLASH12 range can be operated using all LEDSpace controls.
Please note the multi-coloured strip image is for illustrative purposes only. If you need a 'flow' of numerous colours at once instead of block colours, please see our Pixel, digitally addressable strip collection.
Specifications
| Product SKU | SPLASH12S-RGBW |
| Operating voltage | 24V |
| Wattage per metre | 14.4W |
| LEDs per metre | 192 |
| Lumens per metre | 450 |
| Recommended maximum single length |
10m |
| PCB width | 13mm |
| Cut points | 62.5mm |
| Colour Temperature (white) |
2700K |
| IP rating | IP67 |
| Beam angle | 115° |
| Approvals | CE/UKCA |
Downloads
Installation Guide
Your Ultimate Lighting Solution for:
Gardens
Say Goodbye toFestoon LightsSay Hello to SPLASH12It's Where NeighborhoodEnvy Begins
Say Goodbye to
Festoon LightsSay Hello to
SPLASH12It's WhereNeighbourhood Envy Begins
Superior Lighting Technology & Service
IP67 rated against water immersion - ideal for gardens, kitchens & bathroom
Professionally cut, sealed and tested by us, to your exact requirements
Take command of your strip with smart controls, or keep it simple with manual switches
All SPLASH12 LED strips come with a 3-year warranty meet CE + UKCA approvals
The SPLASH12 Collection
From Warm White to 16m+ Hues of Glorious Colour
see what your LED strip could look like:
Sparking Joy: Our Customers' Illuminating Reviews
The service from LED Space was superb. It was first time using them and I will now be using them all the time. I purchased the wire connectors with the LED strip. They work really well and avoid all the soldering. I also purchased all the drivers from LEDSpace. Thankyou for great service and product
Excellent all round and very happy with the result
I've used LED Space a number of times for lighting cabinets etc that I build. Being an electrical numpty I usually need advice. LED Space are excellent and will patiently explain everything I need to know. Also they will put a kit together once they know what I am building. Superb service. Highly recommended.
Always had a good experience here, even when I’ve wanted bespoke work completing its never been a problem. Shaun has always been very helpful and come up with a solution. Highly recommend.
Bought for a customer to go below island and cabinets and above cabinets. No dotting just continuous light through corner profile. Had a bit spare so added some under stairs.
Really easy to connect.
Simply superb kit, everything as expected and more. Our electrician is already recommending to his other customers.
The dimming and white colour temperature adjustment is amazing, the install was straight forward, as was pairing the RF units to the controllers (think XBox controller style)
Don’t bother buying cheap rubbish, you’ll regret it and not get the effect you want, stick with these guys
Lovely lights, customer service is excellent and very knowledgeable. Order fulfilment is very fast. Been complemented on lights a lot! Total cost come up 25% cheaper than other electrical merchants!
Yeah great product. Super bright, great colours.
Downside is its very fragile to install.
Great costumer service. The LED strip is very good quality and easy installation. Very happy with the final result.
Great LED strips and Shaun was very helpful with advice for my Lantern design. Overall affect is stunning now
Strongly recommend led space
Very fast delivery, all items in stock,
I ordered wrong transformers and after speaking to Shaun he worked out the transformer i needed and also gave some good advice, really great company to buy from, will be using them again in the next couple of months.
Customer Reviews
Ordered Slash12 online after reading the reviews, I must say the lights look amazing. Comms were excellent along with next day👍
Does the job of light behind a sign on a curved wall.
The Neon LED strip I bought with associated parts is high quality and works perfectly.
The way the website has the parts you will need with the LED strip is great, shame the Driver I wanted and chose, incorrectly stated a maximum shorter length of strip.
This was a minor niggle in an otherwise great experience.
Brilliant client loves it 👍
Excellent product and great service.
Superb light strip and looks exactly as I’d hoped. I have the strip fitted around pagoda over hot tub ,, looks great and gives the perfect ambience I’d hoped for,
Excellent advice was given from Staff who sent exactly what was needed to meet my requirements.
Super chuffed customer
Brilliant service and really helpful team. The products are high quality and the team were on hand to help turn my initial concept to turn it into the right products. Quick easy next day delivery meant I had everything quickly. Would recommend
Great product, easy to install, looks good- Dave at LED space was quick to answer and send the quotation for this small project, items arrived on time and well packed, thank you LED Space
Had a problem with my installation. got help and support when I called in and issue was resolved. thanks. Lights look amazing in my new wet rooom
The light output from these lights is amazing. The ability to work with the Tuya app is great. I wish the website had details about pixel density per M and also the chipset they used on the technical details for the product, I had to ask these questions that i feel most will want to know. If you don't get the pixel density (not to be confused with LED density per M) correct in the app then the effects supplied in the app don't work correctly and you either end up cutting the effects off prematurely or you have weird results.
Product Q&A
-
I have 4M of the SPLASH12 and the TUYA app is asking for the light trip length in pixels. Do you have a guide at all for this setting?
Thank you for your enquiry,
Splash12 RGB has 12 pixels per metre and so you would have 48 pixels.
I hope this helps. -
I am working out the length for a set of L shape lights with a 60mm radius corner as stated in your spec. Do you use the inside radius measurement R=60mm or the middle measurement of R=66.5mm or outside measurement of R=73 as it makes a difference. Can you make a 90 degree corner to make a L shape
Hi George,
Apologies for the delay, I had to take advice on this one. We use the middle measurement of 66.5mm for the radius. -
Do you have the splash 12 in red,Amber and in 12volt many thanks
Hi,
The operating voltage of this strip is 24V, unfortunatley we don't stock the 12V option. With that strip you can achieve any colour. -
Do the SPLASH12 strips need to be mounted in one of your mounting channels (e.g. for heat-sinking)? I'm thinking of using them on the underside of a wood mantel. The neatest way of doing it would be to rout a channel in the wood so the strip would be flush mounted. Also, do the strips have self adhesive tape on the back as your others do?
Hi,
That strip doesn't require an aluminium channel.
Yes, it can be installed on the underside of a wood mantle.
Splash12 dosen't have 3M VHB adhesive but is easy to install by specially designed mounting options.
