2m ALU17P-S 35.2mm Wide Deep Recessed Aluminium LED Profile Channel + Diffuser + End Caps for LED Strip
📏 Need longer runs of profile? Most of our LED Profiles you can simply butt together.
✂️ Need shorter lengths? Cut by yourself or add our cutting service (leave a note at checkout with required cutting lengths).
➕ Need extra end caps? Extra end caps for ALU17P-S can be found in the profile accessories section.

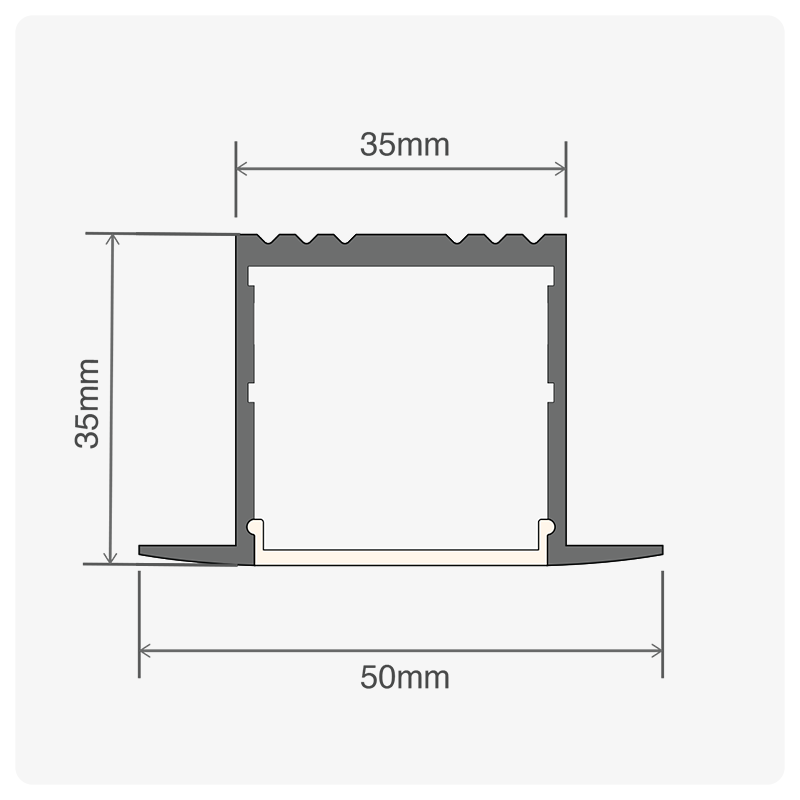

- 35.2mm wide deep recessed LED profile
- Reduced spotting to produce a smoother light output
- Supplied with an opal diffuser & a pair of end caps
- Suitable for LED strip lights up to 30mm wide

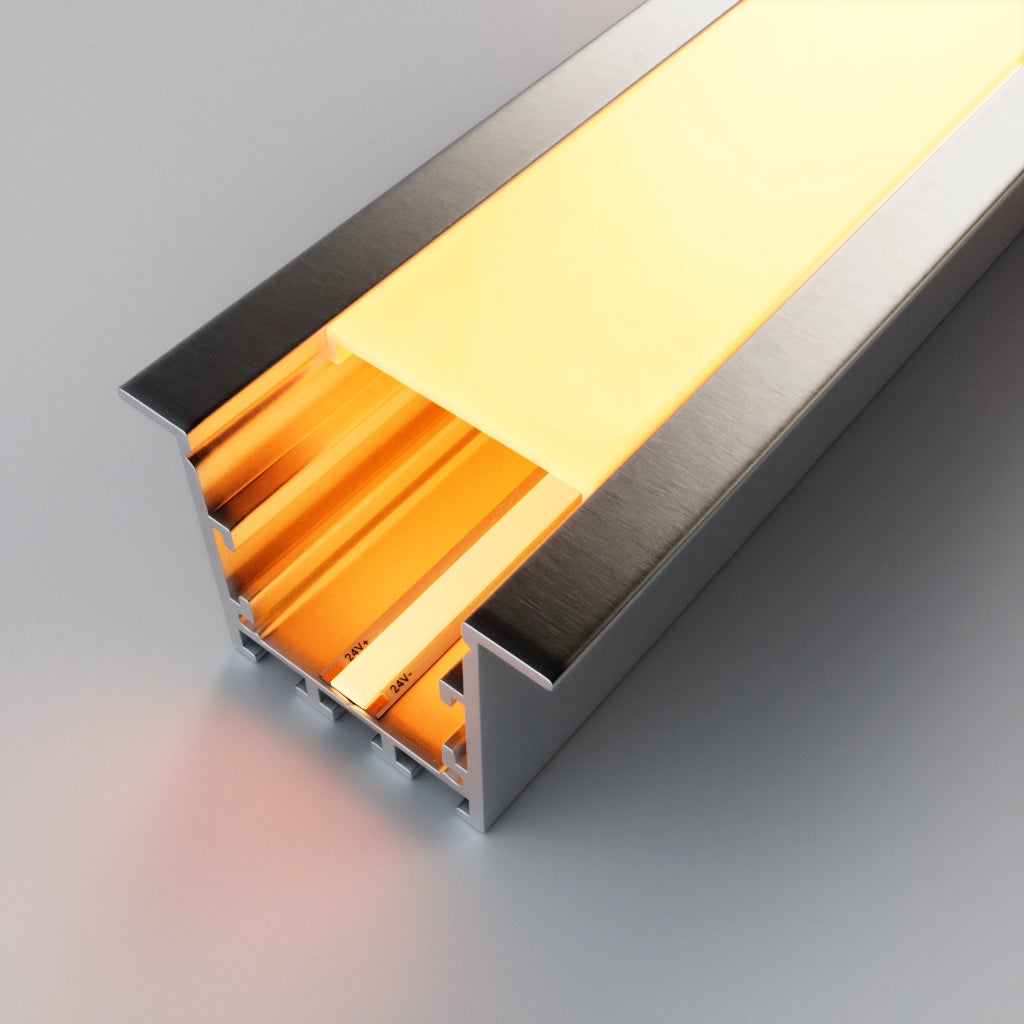

These deeper LED profiles provide more distance between the LED and diffuser thus reducing spotting and producing a smoother light appearance.
Ideal for creating bright primary lighting as it has plenty of space for high power or colour changing LED strip.

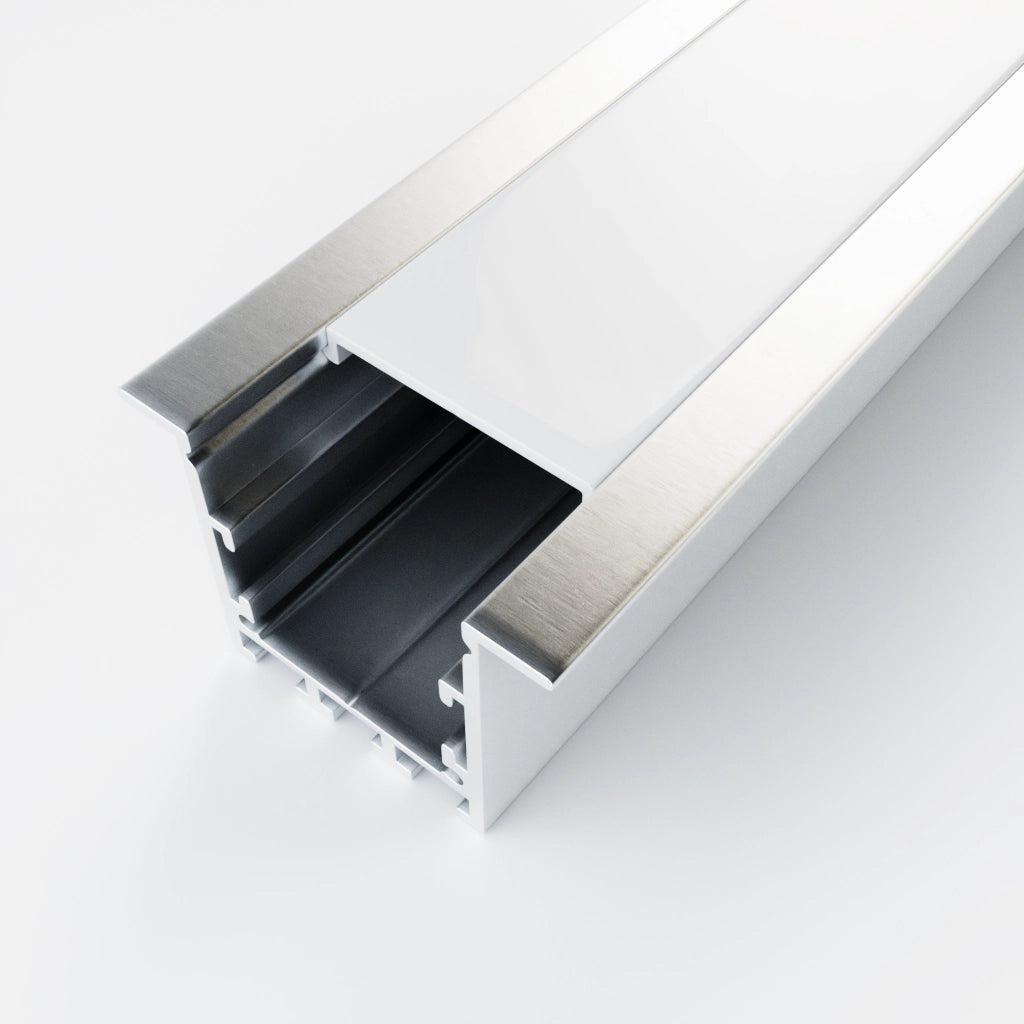

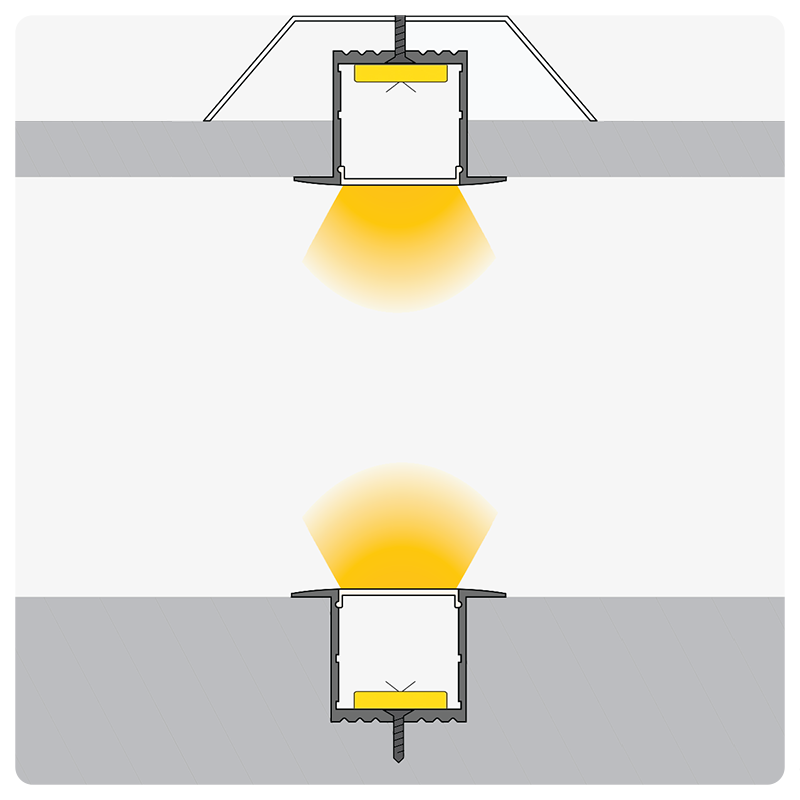

This LED aluminium profile is a deep version of our wide recessed profile and is designed to be rebated to sit flush with the mounting surface. The wider internal sizing leaves enough space for double rows or extra wide LED strips.
This LED housing is supplied complete with diffuser and end caps.
Product Code : ALU17P-S
LED strip lights sold separately.
Supplied Complete With End Caps & Mounting Clips (where applicable)
Ideal for use with our non-IP rated & IP65 Splashproof LED Strip
Professional, Durable Finish
Easy To Install
A reliable LED strip lighting system relies on two elements being correct – proper system design and correct installation. If corners are cut then the installation may well work for a while but premature failure or erratic performance is likely.View Details
HaloLED is a cost effective, room level, smart lighting system that allows you to easily control different types of led lighting from one place. Create scenes and zones, mix different types of LED Strip .View Details
Tunable white LED strip light, adjustable colour temperature LED strip or CCT changeable LED tape lights are able to change between different temperatures of white light ranging from very cool white all the way down to very warm white and everything in-between.View Details
QUESTIONS & ANSWERSAsk a Question
Hi , are there bends available with the recessed aluminium strips for led lighting
Hi, In order to create corners with this profile you would need to mitre cut it and butt the profiles together.
Do you supply coupling connectors with this profile?
Hi, Unfortuantely we do not supply connectors for this profile, however it is simple to but these up toegther to make a longer run.
