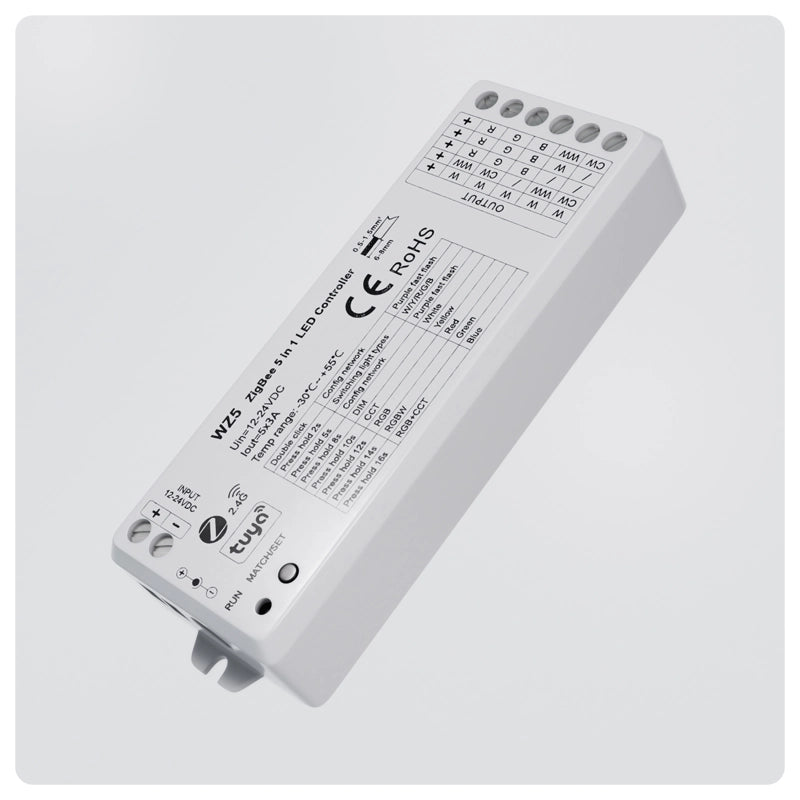

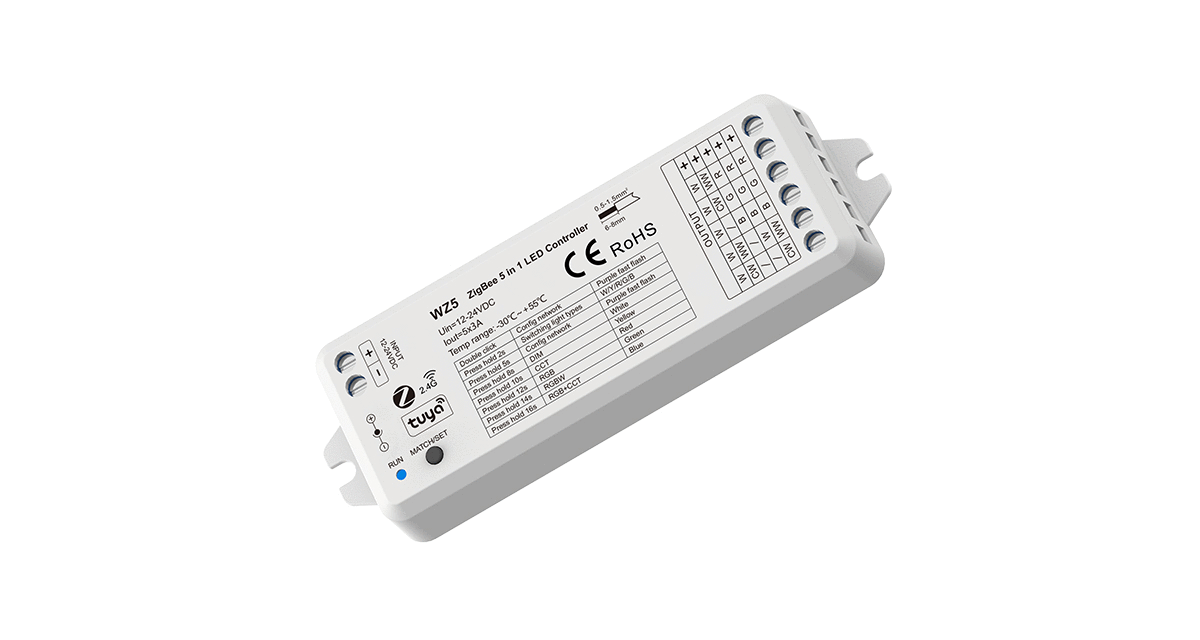

H3 Zigbee LED Strip Interface, 12-24V
Overview
A Zigbee interface for single-colour, adjustable-white/CCT, RGB and RGBW LED strip. It connects between a suitable DC power supply and the strip to provide switching and brightness control.
Control & compatibility
- On/off and brightness control
- White colour-temperature control with adjustable-white/CCT strip
- Colour control with RGB/RGBW strip
- Control through a compatible hub linked to Google Home, Alexa or Philips Hue
Setup & installation
- Requires a compatible Zigbee hub or bridge.
- Configure the interface for the connected strip type.
Specifications
- Input: 12-24V DC
- Five output channels
- Maximum output: 3A per channel (72W per channel at 24V)
- Manufacturer input rating: 15.5A
Customer Reviews
My electrician said it was the best, most robust system he had worked with. The lights are continuous, no dotting and of good brightness. An excellent product, I would highly recommend them.
Effortlessly connected to my Philips Hue system with no issues and full colour changing and dimming
Contacted ledspace for support with a product I had bought almost 12 months to the day, after some troubleshooting with no success, I received a new zigbee module the next day with no hassle or dramas, it literally landed on my doorstep without me even asking for one. Wish all companies were this helpful.
this LED controller has given me quite a lot of bother and i wish i hadn’t bought it. there’s one button to configure it and it’s really fiddly. i’ve tried to pair it to my zigbee hub and after initially connecting in the wrong mode, now simply won’t connect at all. apparently to factory reset there are a number of confusing ways i can press the one button, and i’ve tried all combinations. i’ll have to send it back, if ledspace will have it because it’s not fit for purpose.
