2m ALU76 Plaster-In End Bead LED Profile, 39 x 20mm

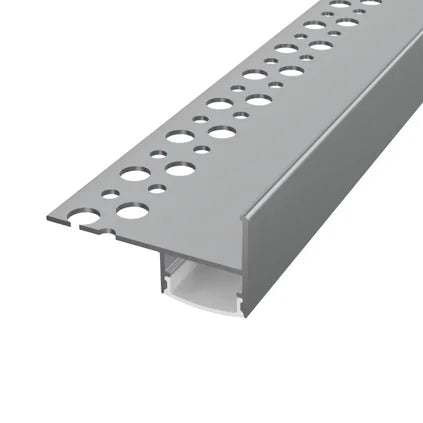

ALU76 forms an illuminated end bead at the end of a plasterboard run. Its flange sits beneath the plaster finish, leaving a neat lighting channel at the board edge.

One 2m aluminium profile channel; One 2m diffuser; 2 end caps (1 left, 1 right).

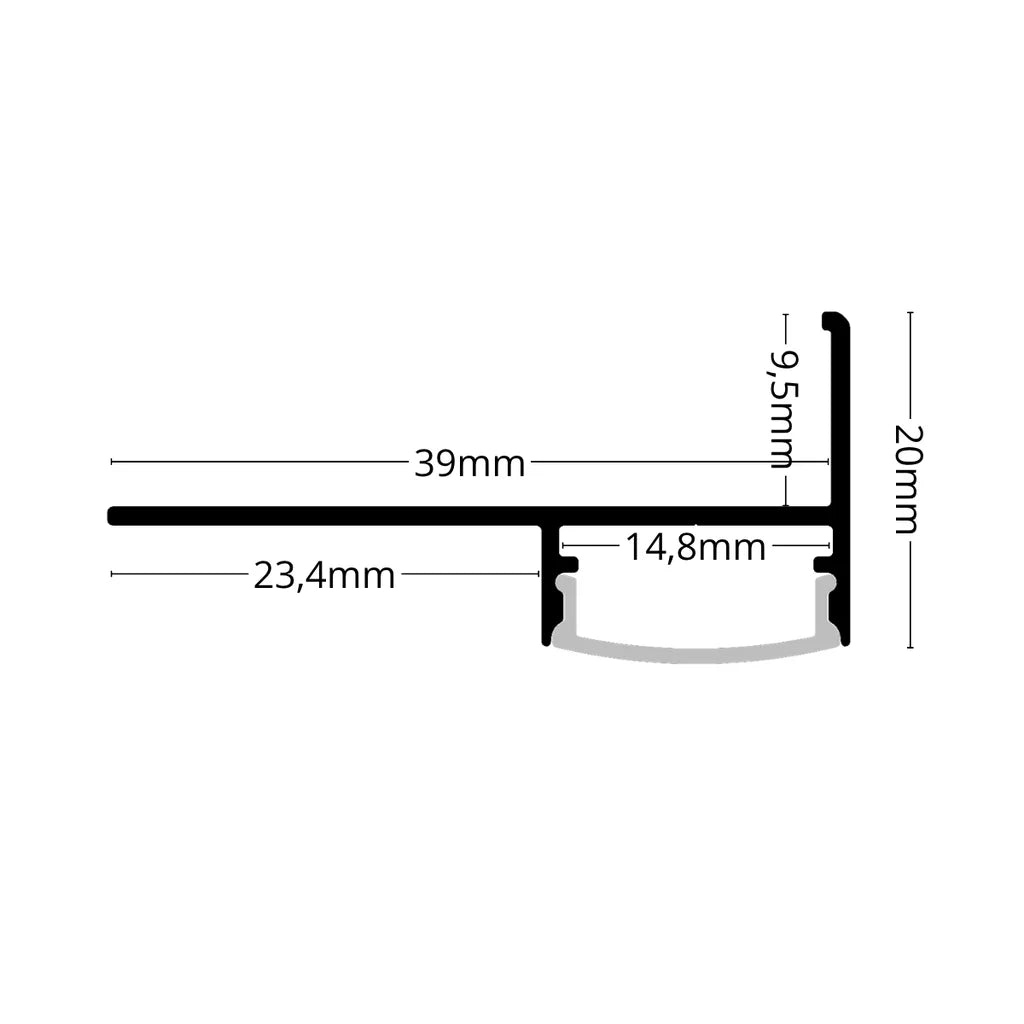

The nominal cross-section is 39 x 20mm, with a 14.8mm internal channel width. The product gallery contains the dimension drawing.

ALU76 accommodates LED strips up to 14mm wide.

Fix the flange at the end of the plasterboard run and finish the surrounding plaster up to the profile edge. Keep the lighting channel and diffuser face clear.

The diffuser softens the light and reduces glare. The final appearance depends on the LED strip and the depth of the profile.

Yes. The aluminium profile can be cut with a suitable hacksaw or aluminium-cutting blade. LEDSpace also offers a profile-cutting service, priced per cut; add your required lengths in the basket notes.

Yes. The light colour, brightness and controls come from the LED strip you fit and its compatible power and control components. Match the strip and its connections to the profile dimensions.

Matching left hand and right hand ALU76 end caps and the profile-cutting service are linked in the Accessories tab.
