Professional Housing & Light Diffusion
2m ALU09 Recessed LED Profile, 23.3 x 15.3mm
Overview

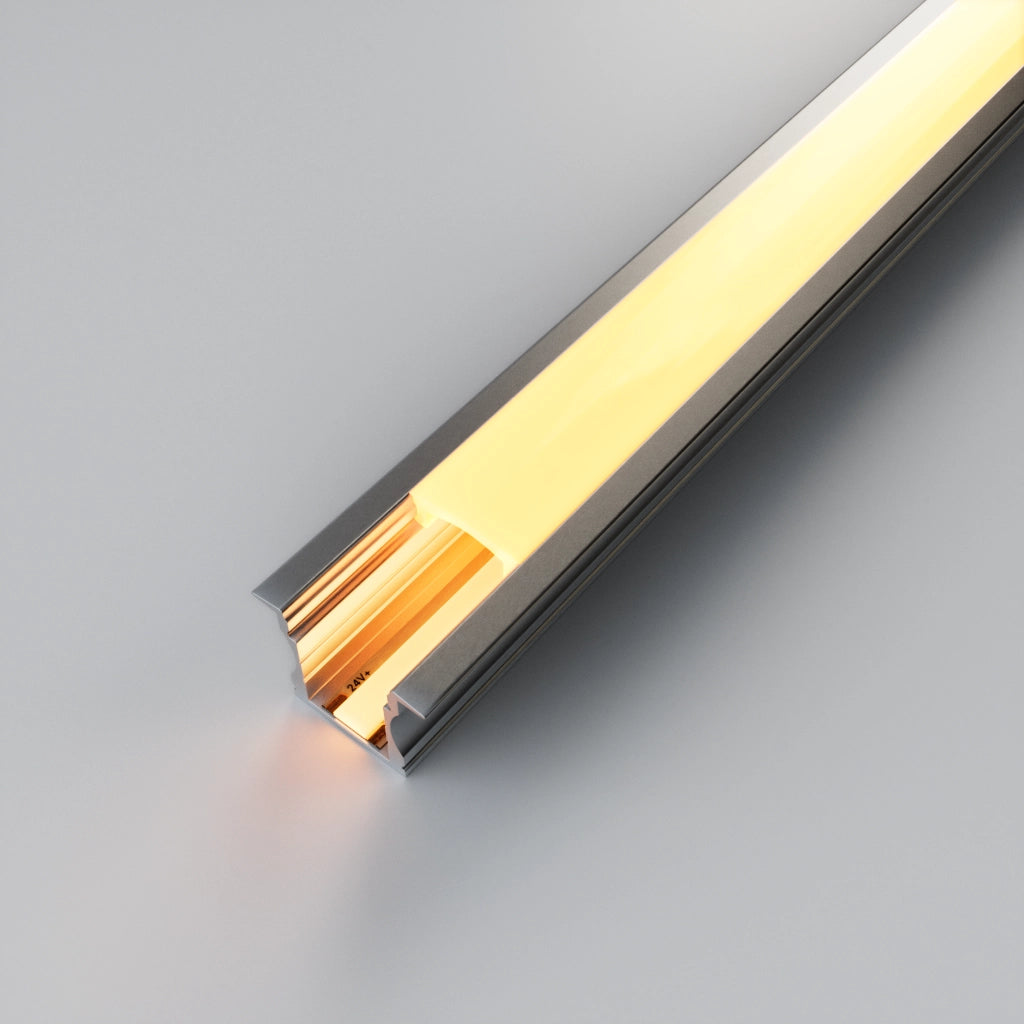

ALU09 is a deeper recessed profile for furniture and wall lighting. Its depth increases the distance between the strip and diffuser to help reduce visible LED dots.

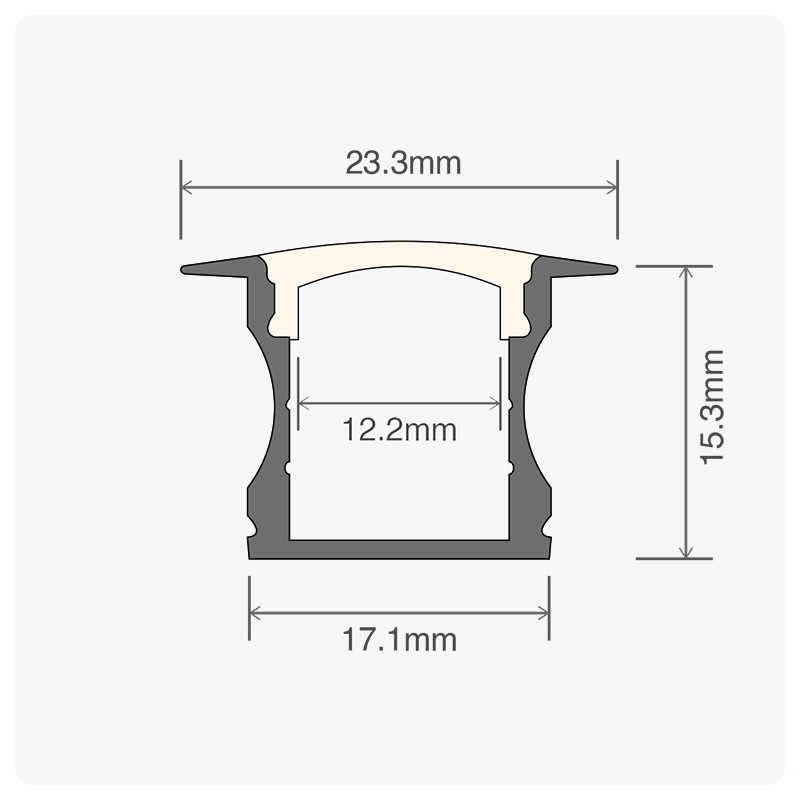

Dimensions & compatibility
- Length per profile: 2000mm (2m)
- Nominal cross-section: 23.3 x 15.3mm
- Internal channel width: 12.2mm
- Body width: 17.1mm
- LED strip compatibility: LED strips up to 12mm wide
- Profile material: aluminium
- Diffuser: opal
Published dimensions are nominal. Extruded profiles are subject to manufacturing tolerances of up to plus or minus 1mm.

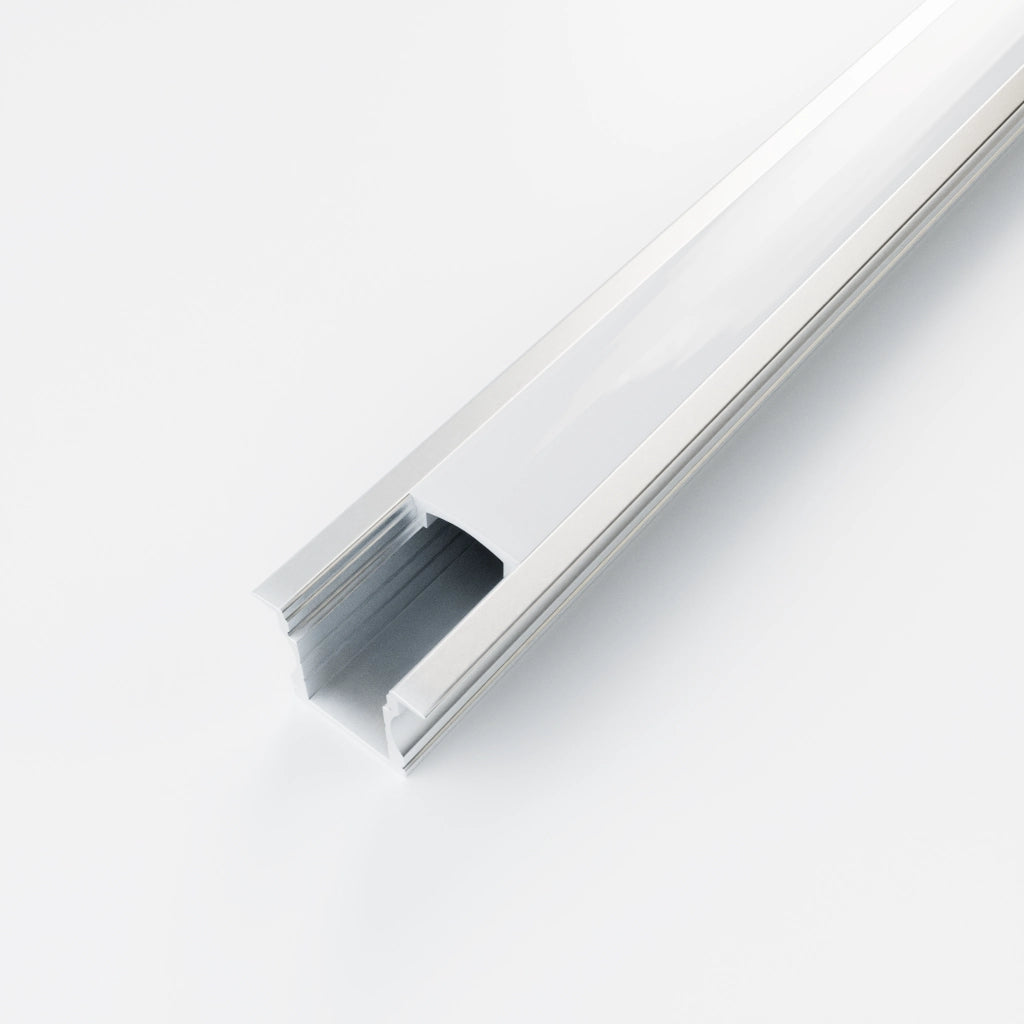

What's included
- One 2m aluminium profile channel
- One 2m opal diffuser
- 4 end caps (2 blank, 2 slotted)
Installation

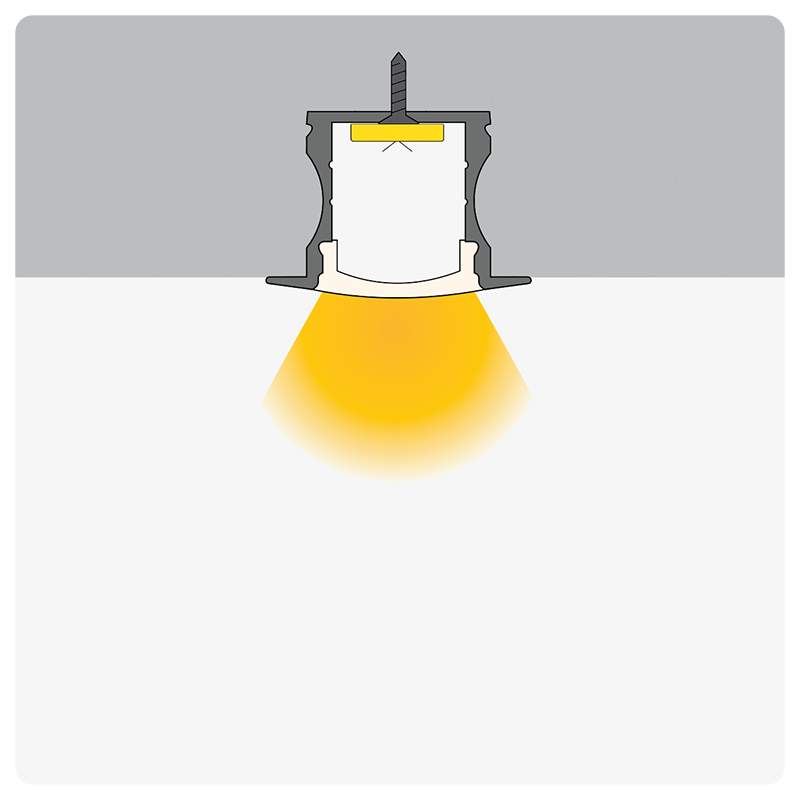

Recess the profile into a groove sized to the dimension drawing. Its flanges cover the edges of the recess, leaving the diffuser visible at the surface.
Accessories
- Blank end cap: closes the channel end.
- Slotted end cap: provides a cable exit at the channel end.
- Cut aluminium to length: our cutting service, priced per cut. Add the required lengths in the basket notes.
FAQ
View all:
Customer Reviews

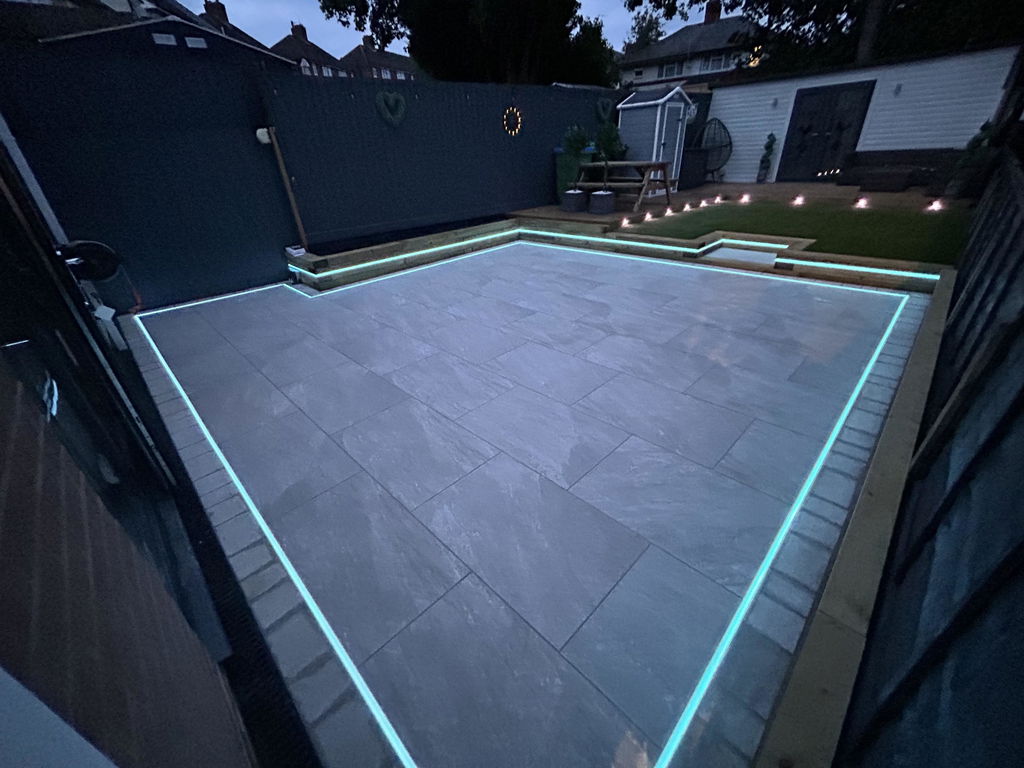

This was the first time we opted to use the aluminium profiles to contain neon LED lighting within a patio space and i can’t recommend these enough. such a simple but sleek design and brought a modern touch to the garden.
Excellent product proven to be better than expected
Great service and a quality product would recommend to everyone looking for led profiles.
Deep profile is the only way forward if you don't want to see the led's/dots
Great service, great products
Profile as expected, delivery very good.
