20m (10 x 2m) ALU13 Recessed LED Profile, 30.5 x 10mm

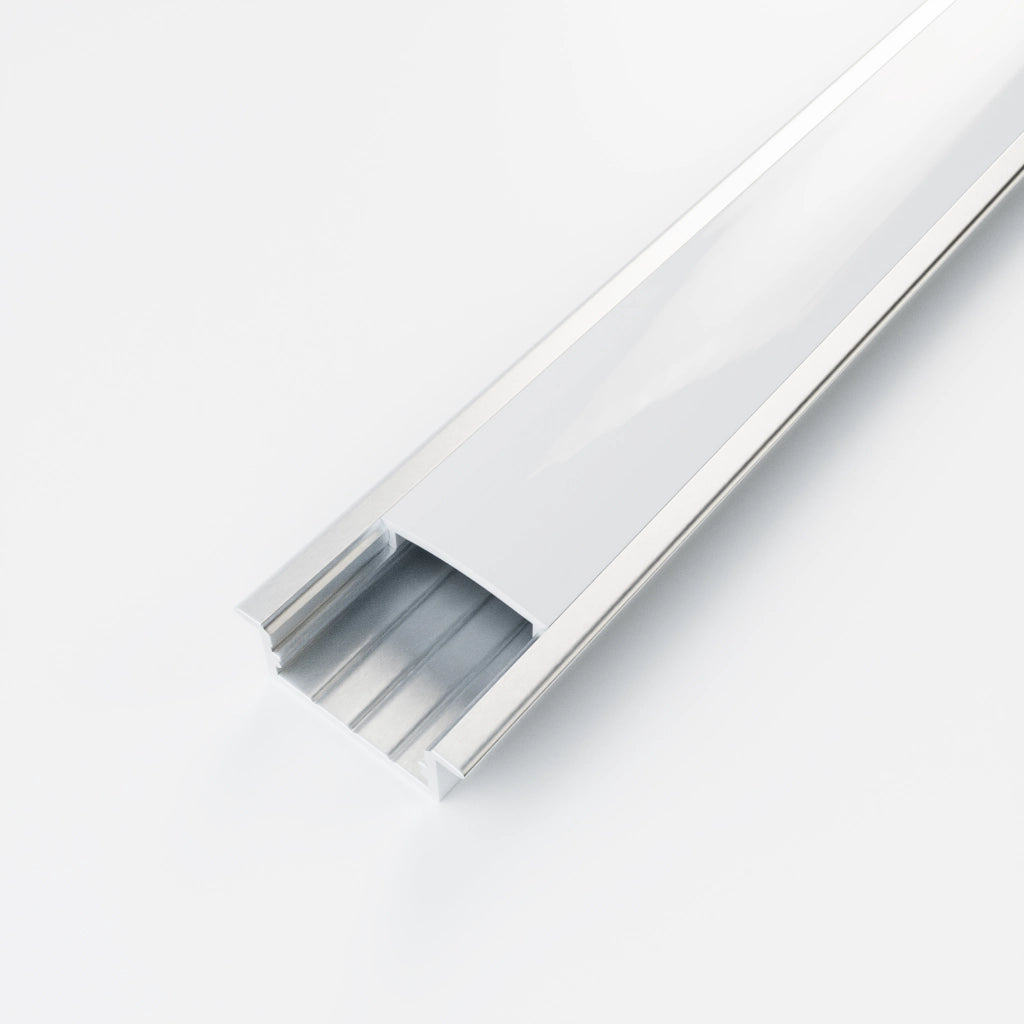

ALU13 is a wide recessed aluminium profile for furniture, retail displays and other visible lighting features. Its flanges cover the recess edges and the opal diffuser softens the light.

10 2m aluminium profile channels; 10 2m opal diffusers; 40 end caps (20 blank, 20 slotted). Total profile length: 20m.

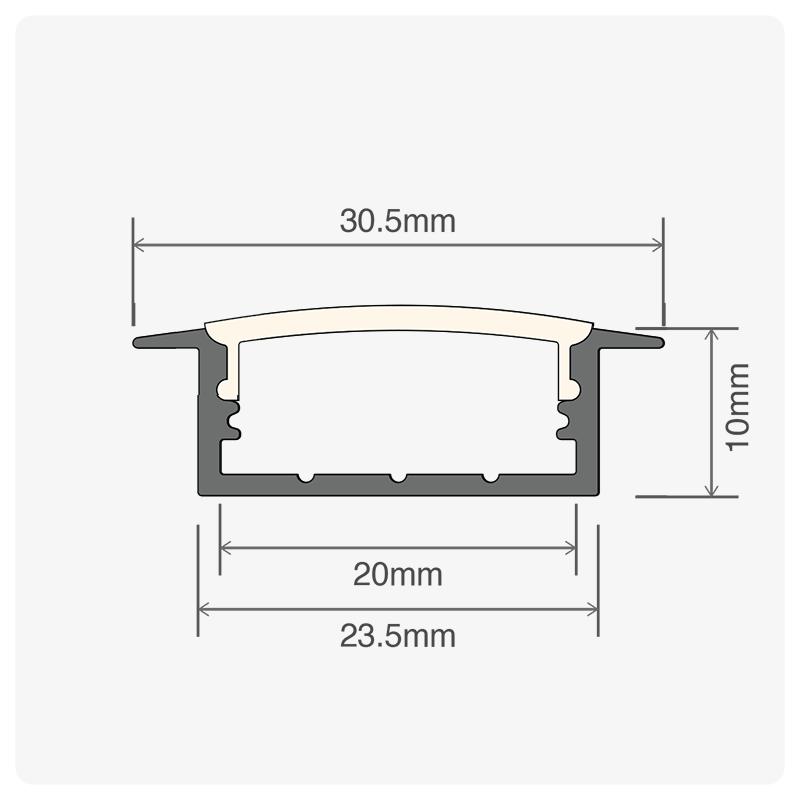

The nominal cross-section is 30.5 x 10mm, with a 20mm internal channel width. The product gallery contains the dimension drawing.

ALU13 accommodates LED strips up to 20mm wide.

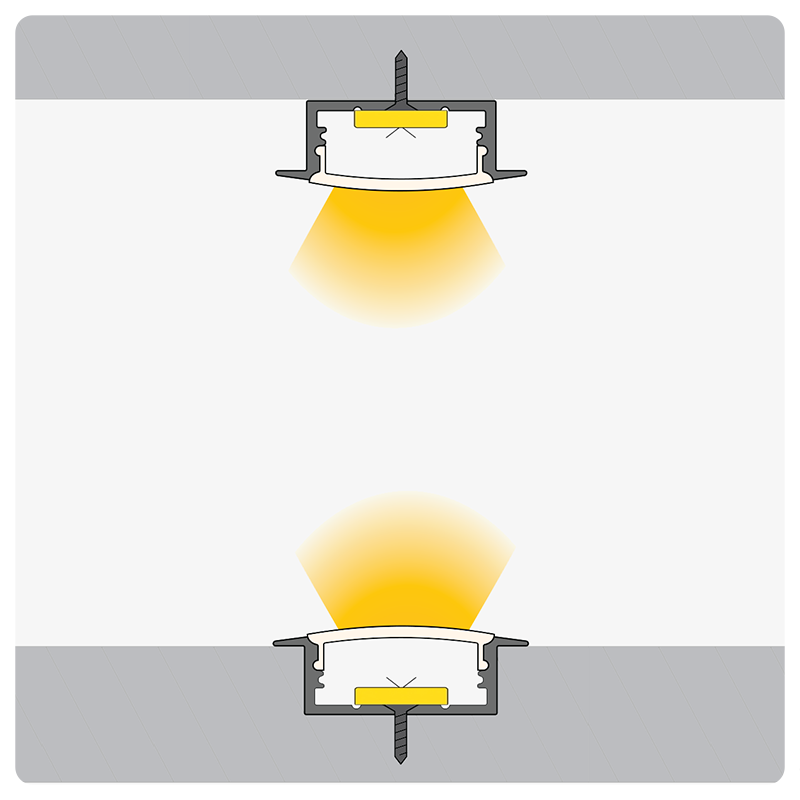

Form the recess to suit the 23.5mm profile body and secure the channel in place. The flanges sit over the recess edges for a tidy finish.

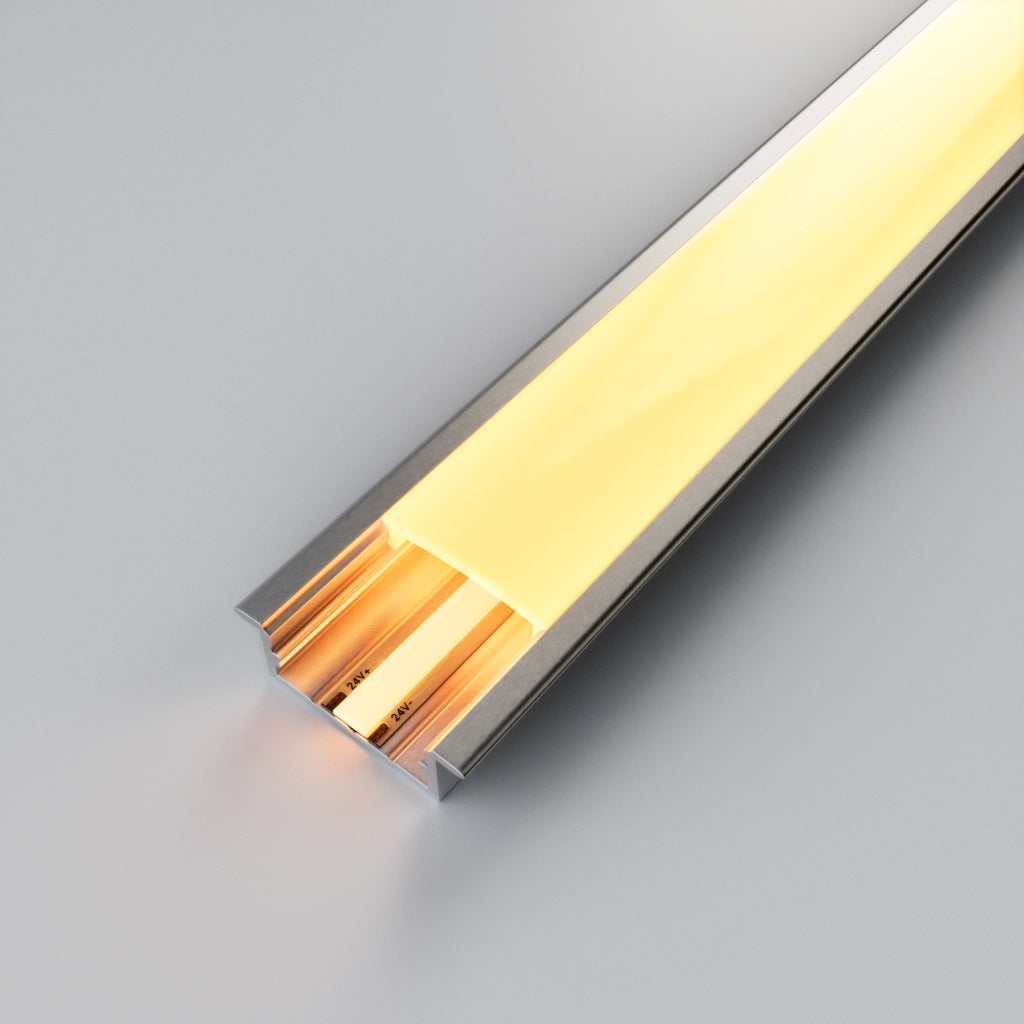

The diffuser softens the light and reduces glare. The final appearance depends on the LED strip and the depth of the profile.

Yes. The aluminium profile can be cut with a suitable hacksaw or aluminium-cutting blade. LEDSpace also offers a profile-cutting service, priced per cut; add your required lengths in the basket notes.

Yes. The light colour, brightness and controls come from the LED strip you fit and its compatible power and control components. Match the strip and its connections to the profile dimensions.

Blank end cap, Slotted end cap are linked in the Accessories tab.

It contains 10 separate 2m aluminium profiles and matching diffuser lengths, giving 20m in total.
