Professional Housing & Light Diffusion
2m ALU16 Corner LED Profile, 30 x 26.5mm
Overview

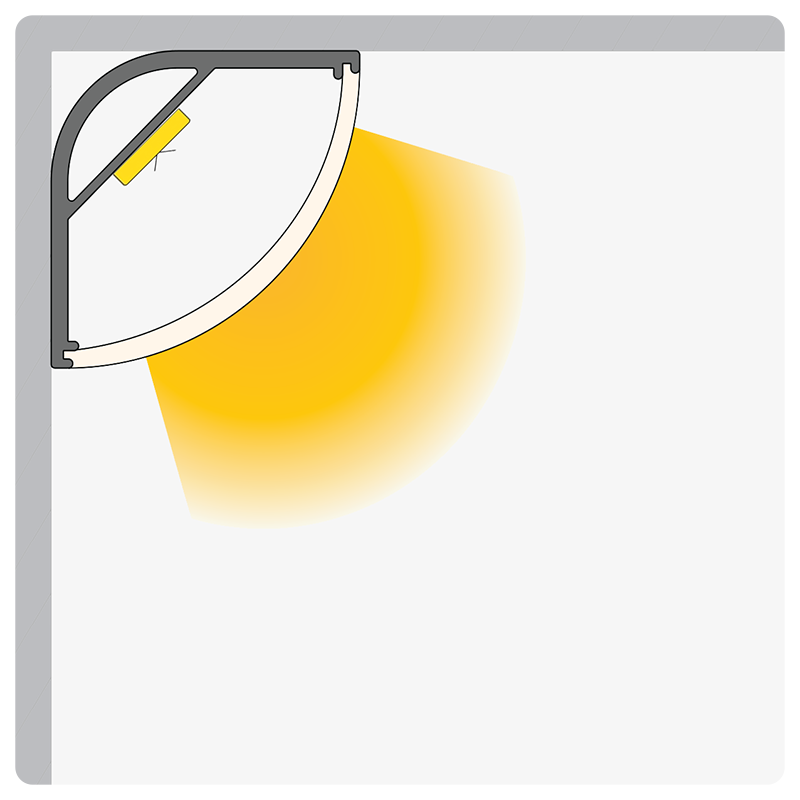

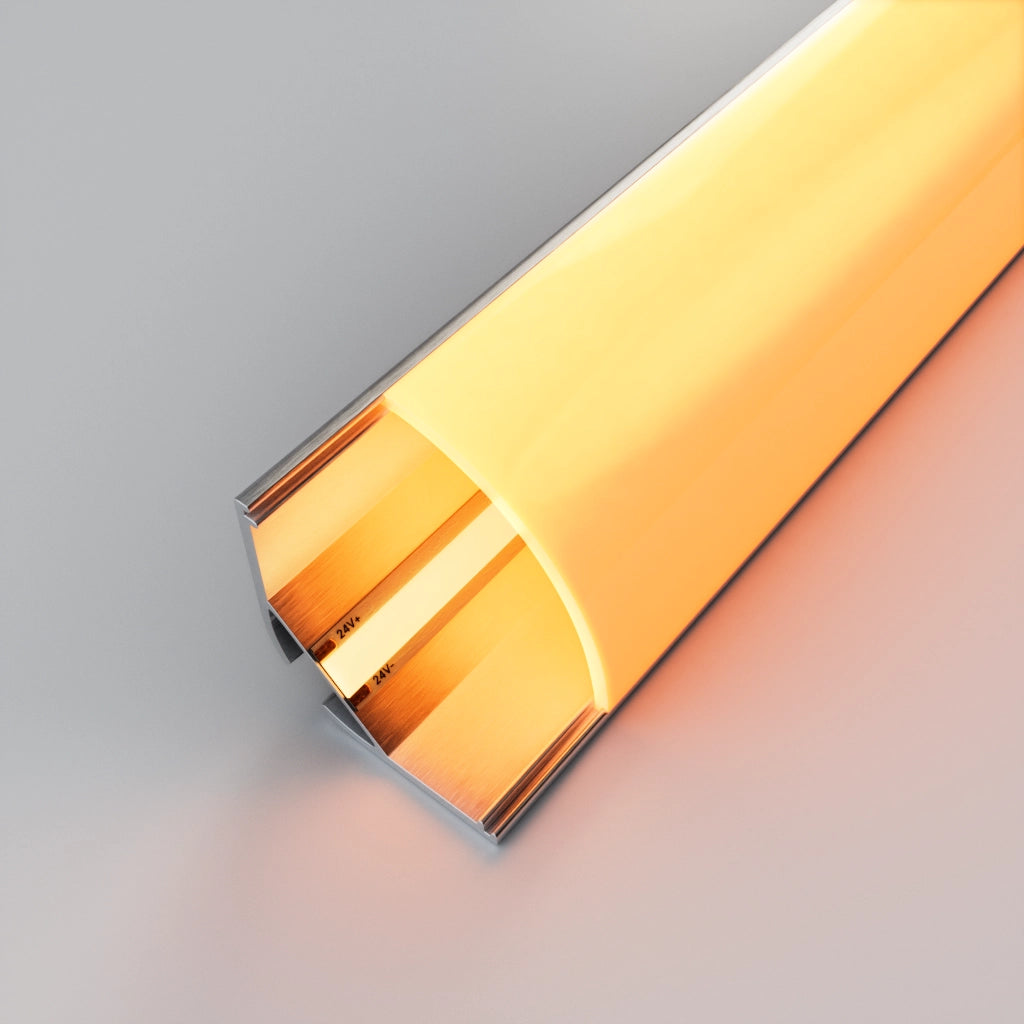

ALU16 is a wide corner profile for under-cabinet lighting, shelving and wall or ceiling joins. It fits into 90-degree corners and accommodates LED strips up to 20mm wide.

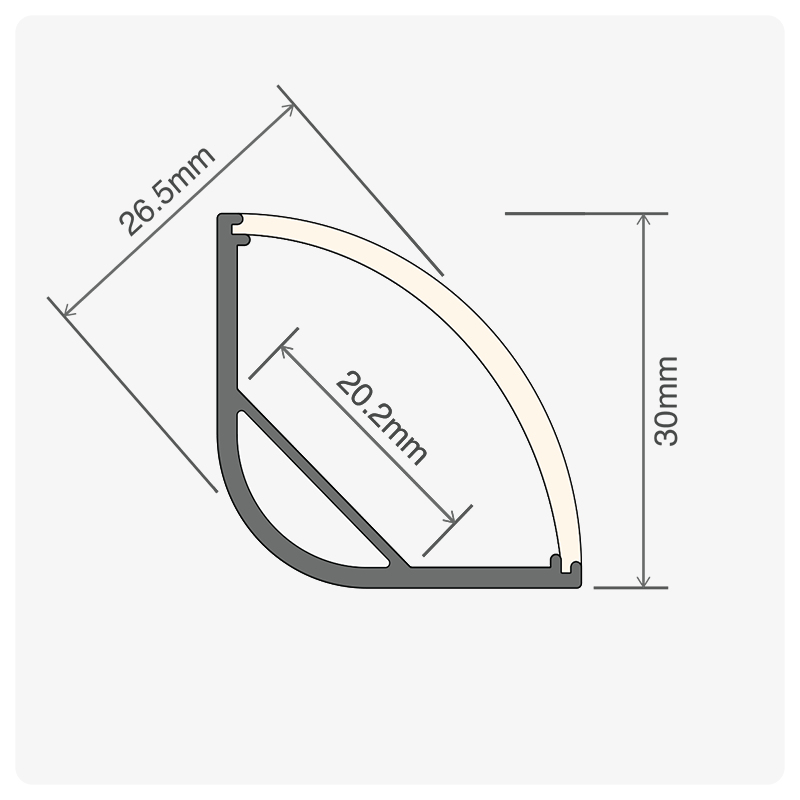

Dimensions & compatibility
- Length per profile: 2000mm (2m)
- Nominal cross-section: 30 x 26.5mm
- Internal channel width: 20.2mm
- LED strip compatibility: LED strips up to 20mm wide
- Profile material: aluminium
- Diffuser: opal
Published dimensions are nominal. Extruded profiles are subject to manufacturing tolerances of up to plus or minus 1mm.
What's included
- One 2m aluminium profile channel
- One 2m opal diffuser
- 4 end caps (2 blank, 2 slotted)
- 4 mounting clips
Installation
Position the profile in the corner and secure it with the matching mounting clips. Fit the diffuser and use the slotted end cap for the cable exit.
Accessories
- Mounting clips: matching clips for securing the profile.
- Blank end cap: closes the channel end.
- Slotted end cap: provides a cable exit at the channel end.
- Replacement diffuser: a matching replacement for this profile.
- Cut aluminium to length: our cutting service, priced per cut. Add the required lengths in the basket notes.
FAQ
View all:
Customer Reviews
Good quality works perfectly!
Ordered aluminium profile with various fittings. It was delivered quickly and was of excellent quality.
Exceptional quality products and customer service Five Star!
Really pleased with the purchase great value and quick efficient delivery. Pleased with the finished product.
Delivery and service 10/10!
Amazing quality and price!
Highly recommended!
Purchased two lengths of two meter of the wide corner profile channel with diffusers, went up great with no issues, end caps finished off the job.
Warm white LED’s looks great over the bi-fold door under the soffit/facia boards.
Would recommend and use again
5 star for service from begging to end
QUALITY PRODUCT
I ordered this 2m length for a 2.8m project I was doing because I had some left over from my last project. I was surprised to find that it was slightly different to last years profile. The previous profile had a channel over the full length which enabled pieces to be extended. Luckily I have the wherewithal to modify the new one. Maybe I ordered the wrong profile but I thought I had used the same part number as last year. On mating the two pieces I found that there was a very small dimensional difference on the distance between the diffuser slots. Again easy to fix with a little squeeze where it joins the older piece. The cross section of the diffuser was also very slightly different to that of the older one but hardly noticeable. I am sure that if I had mentioned it LEDspace would have replaced it but I like a challenge and didn't want to wait. The end effect is that it is not noticeable.
The profile itself is high quality. It comes really well packaged and protected
The stainless steel clips are a perfect fit and very thin so if you want it close to a wall the clips are not a problem.
This product is good quality as I expected.
Very impressed with the speed of delivery, quality of the product and ease of fitting. Dramatically improved the lighting effect from a Hue lightstrip when uplighting a ceiling from the back of a tall shelf.
