Product Code NS30M-LINE10-RGB
Overview

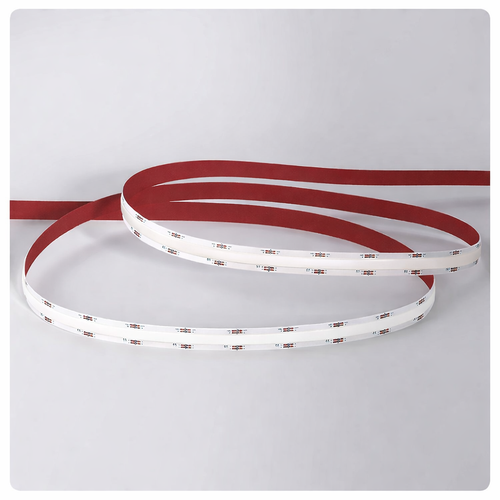

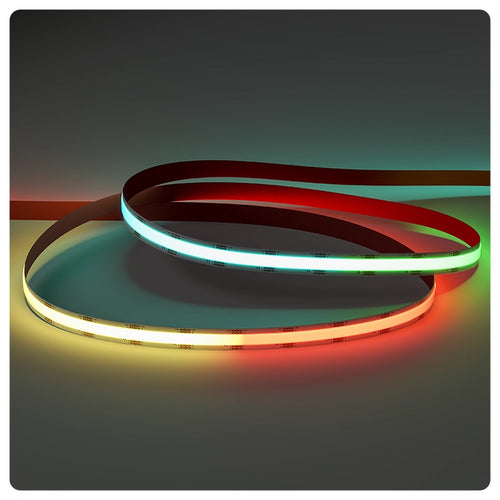

Seamless RGB COB LED strip produces a continuous, dot-free line of light, even without a diffuser. Add colour to shelves, coves and other indoor features.
The 10mm-wide strip uses 840 LEDs per metre and has 3M 300LSE adhesive backing.
Reel contents
Supplied as one 30m reel. Quantity 1 adds 30m to your order. Cut the strip to the lengths required for your installation.
Controls
Choose a colour or a blended cool white using a compatible RGB controller. All sections on the same controller show the same colour at a time.
Use a 24V DC constant-voltage LED power supply suitable for the installed strip sections.
Use a compatible 24V RGB interface to adjust colour and brightness. Choose the interface to suit your preferred app, remote, wall-panel or Zigbee control.
Installation

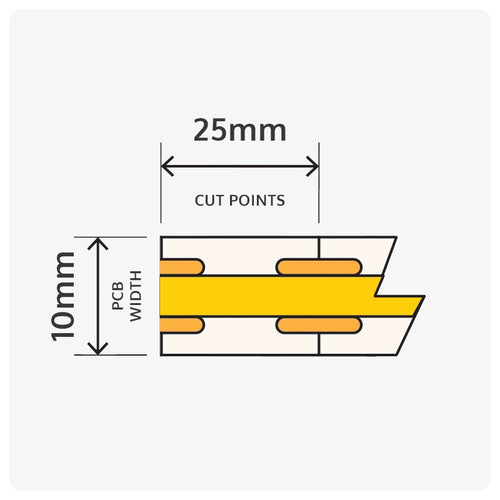

- Cut at the marked 25mm intervals to fit your layout.
- Use 10mm RGB strip connectors and 4-core cable to make power leads or link sections.
- Fix the 3M 300LSE adhesive backing to a suitable clean, dry surface. Measure and test the layout before removing the liner.
- An aluminium profile can provide a neat housing; choose one with room for the 10mm strip and its connections.
- For dry indoor use. Follow the installation instructions.
Compatible cable and connector pack

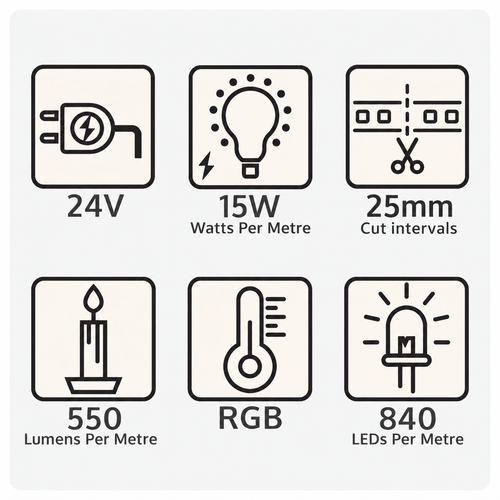

Specifications
- Supplied quantity: One 30m reel
- Colour: RGB
- Operating voltage: 24V DC
- Maximum power: 15W/m
- Light output: 550 lumens/m on blended white
- LED density: 840 LEDs/m
- Strip width: 10mm
- Cutting: 25mm intervals
- Maximum run powered from one end: 7m
- Adhesive backing: 3M 300LSE
- Suitable location: dry indoors
- Warranty: five years
