2m ALU70 Recessed Edge Lighting LED Profile, 33 x 35mm

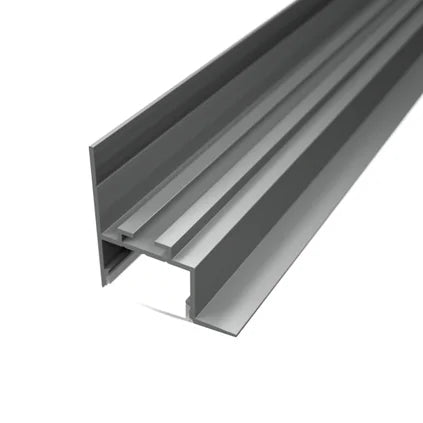

ALU70 creates recessed edge lighting at a wall and ceiling junction. Its channel accommodates two 10mm LED strips in parallel for a wider light source.

One 2m aluminium profile channel; One 2m diffuser; 2 end caps (1 left, 1 right).

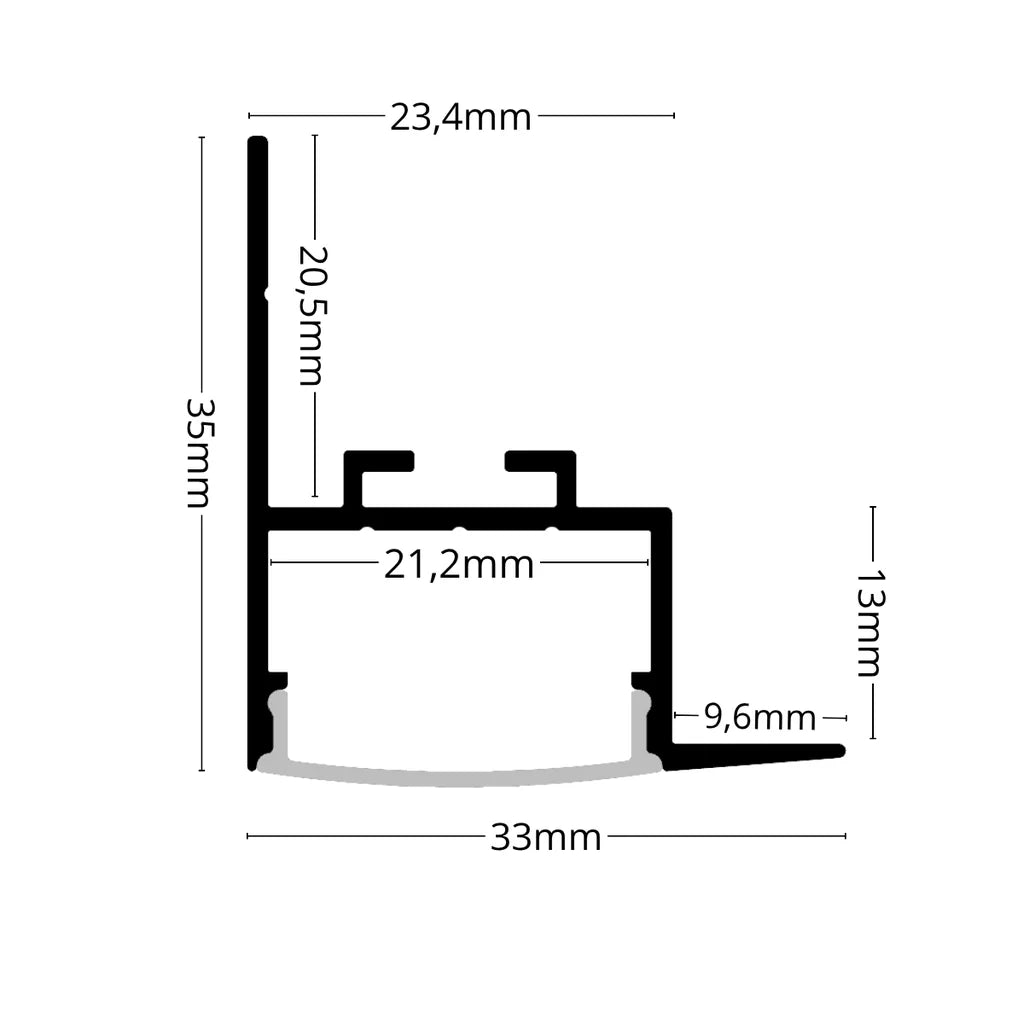

The nominal cross-section is 33 x 35mm, with a 21.2mm internal channel width. The product gallery contains the dimension drawing.

ALU70 accommodates LED strip sized to fit the 21.2mm internal channel.

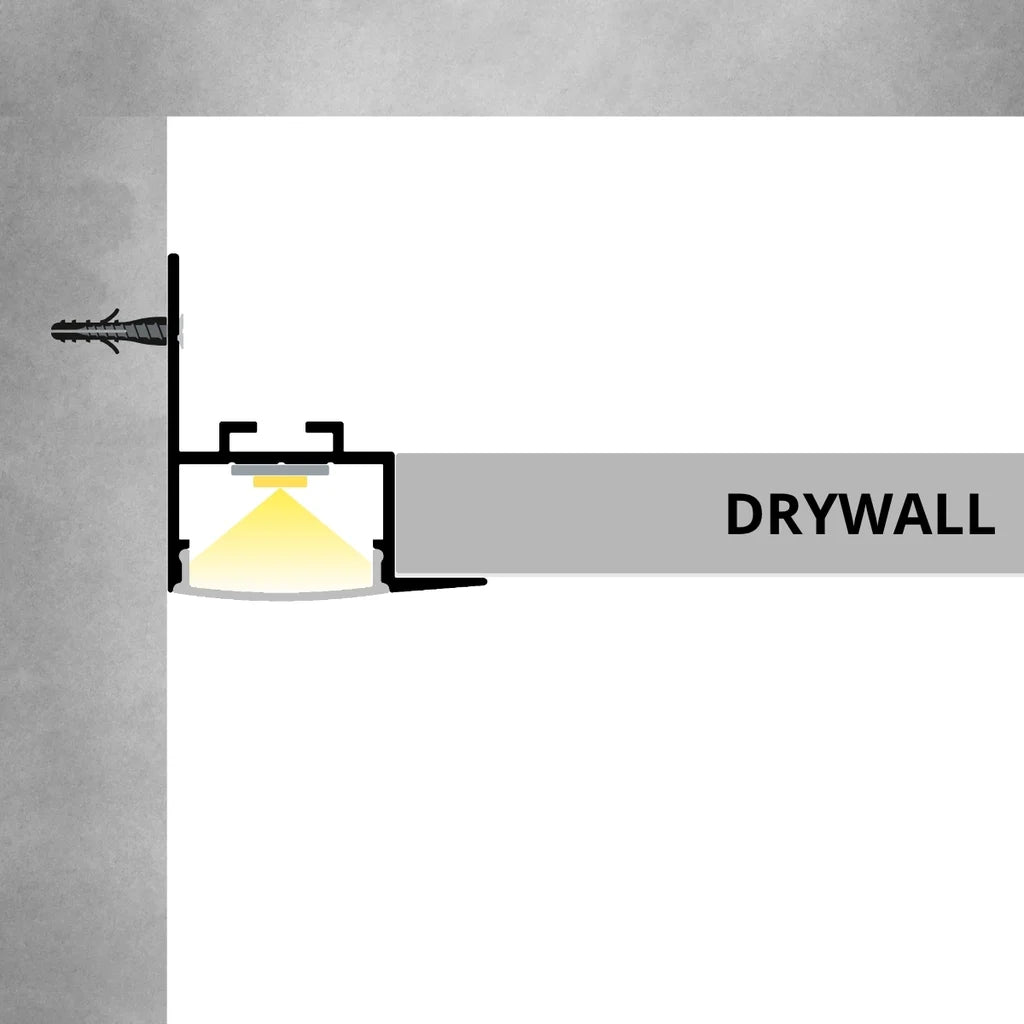

Fix the profile to the supporting wall or framework and finish the plasterboard to its mounting edge, keeping the lighting channel clear.

The diffuser softens the light and reduces glare. The final appearance depends on the LED strip and the depth of the profile.

Yes. The aluminium profile can be cut with a suitable hacksaw or aluminium-cutting blade. LEDSpace also offers a profile-cutting service, priced per cut; add your required lengths in the basket notes.

Yes. The light colour, brightness and controls come from the LED strip you fit and its compatible power and control components. Match the strip and its connections to the profile dimensions.

Matching left hand and right hand ALU70 end caps and the profile-cutting service are linked in the Accessories tab.
