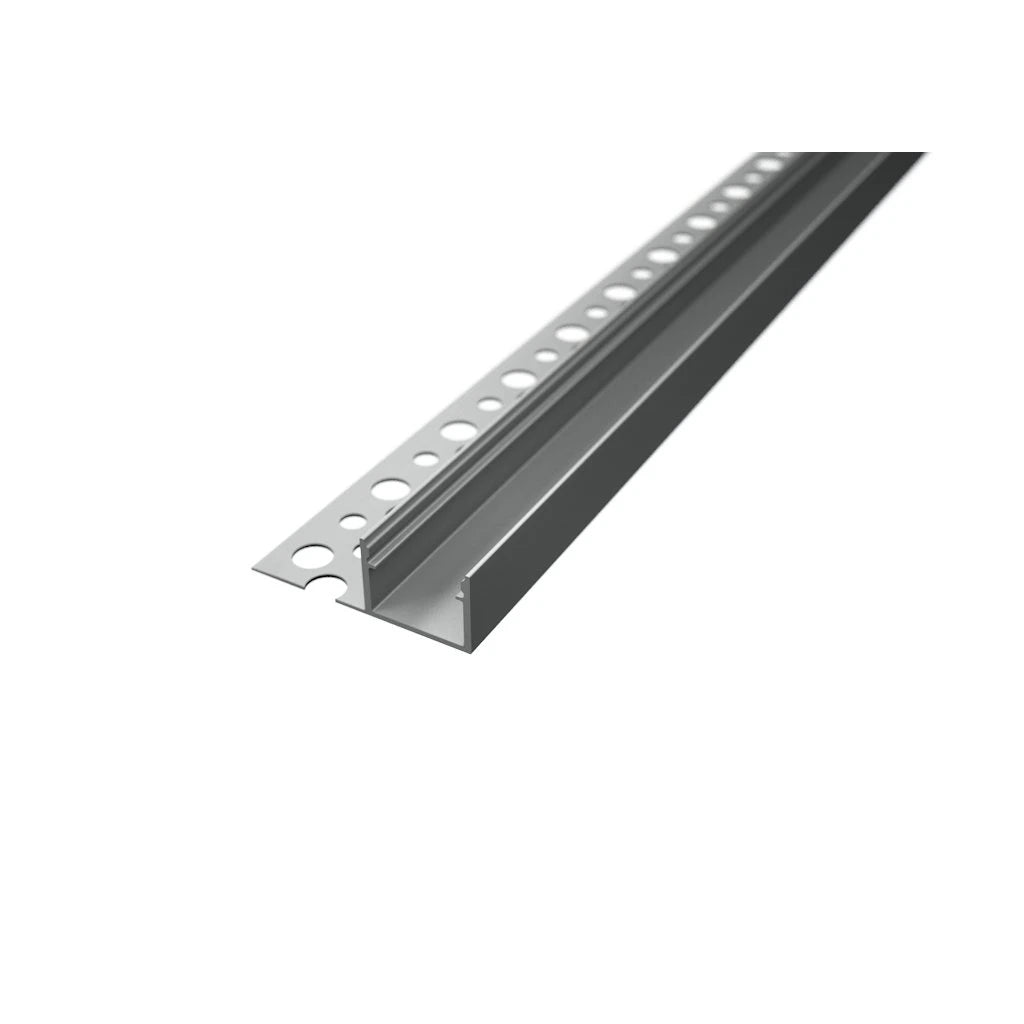

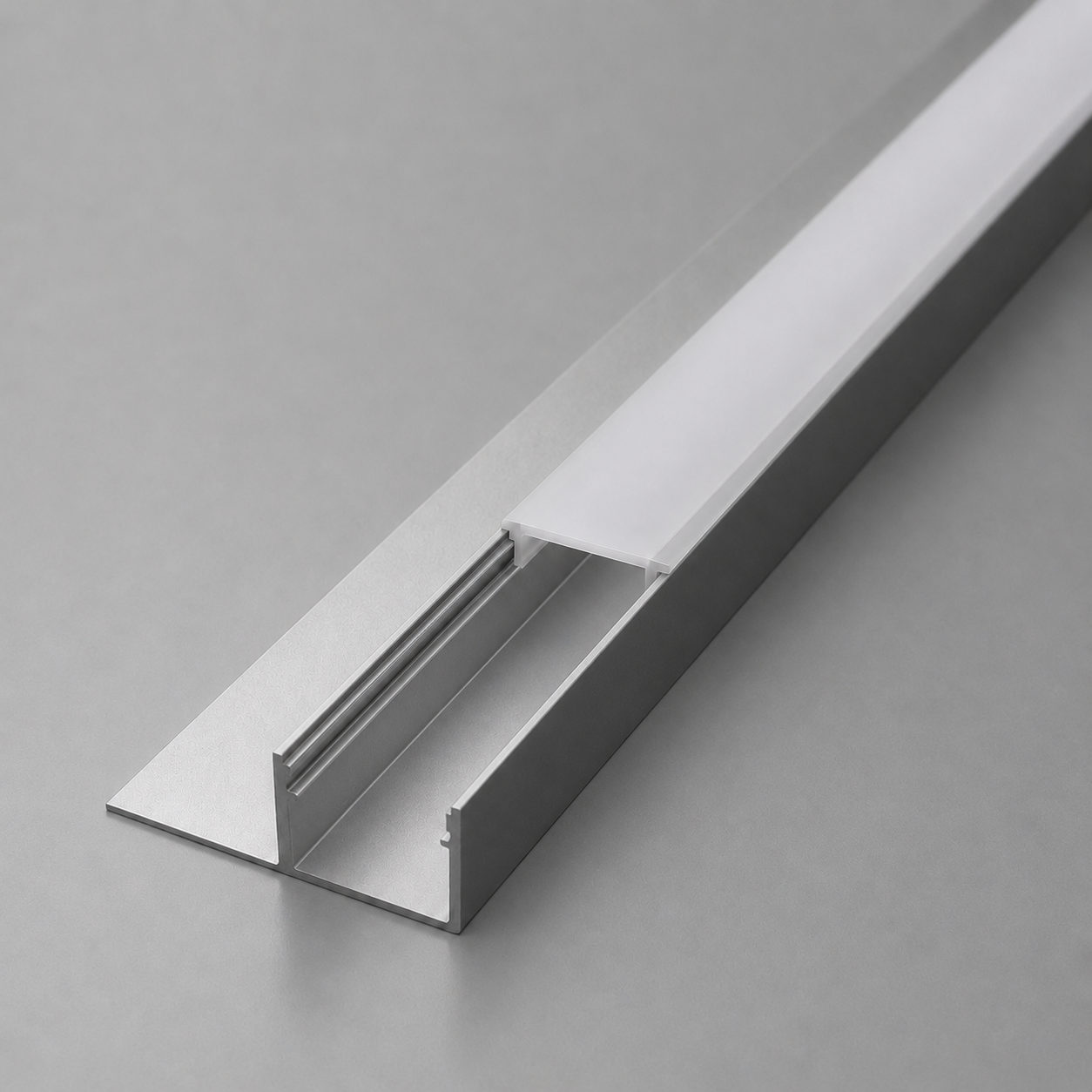

1m ALU34 Tile-In LED Profile, 37 x 13mm

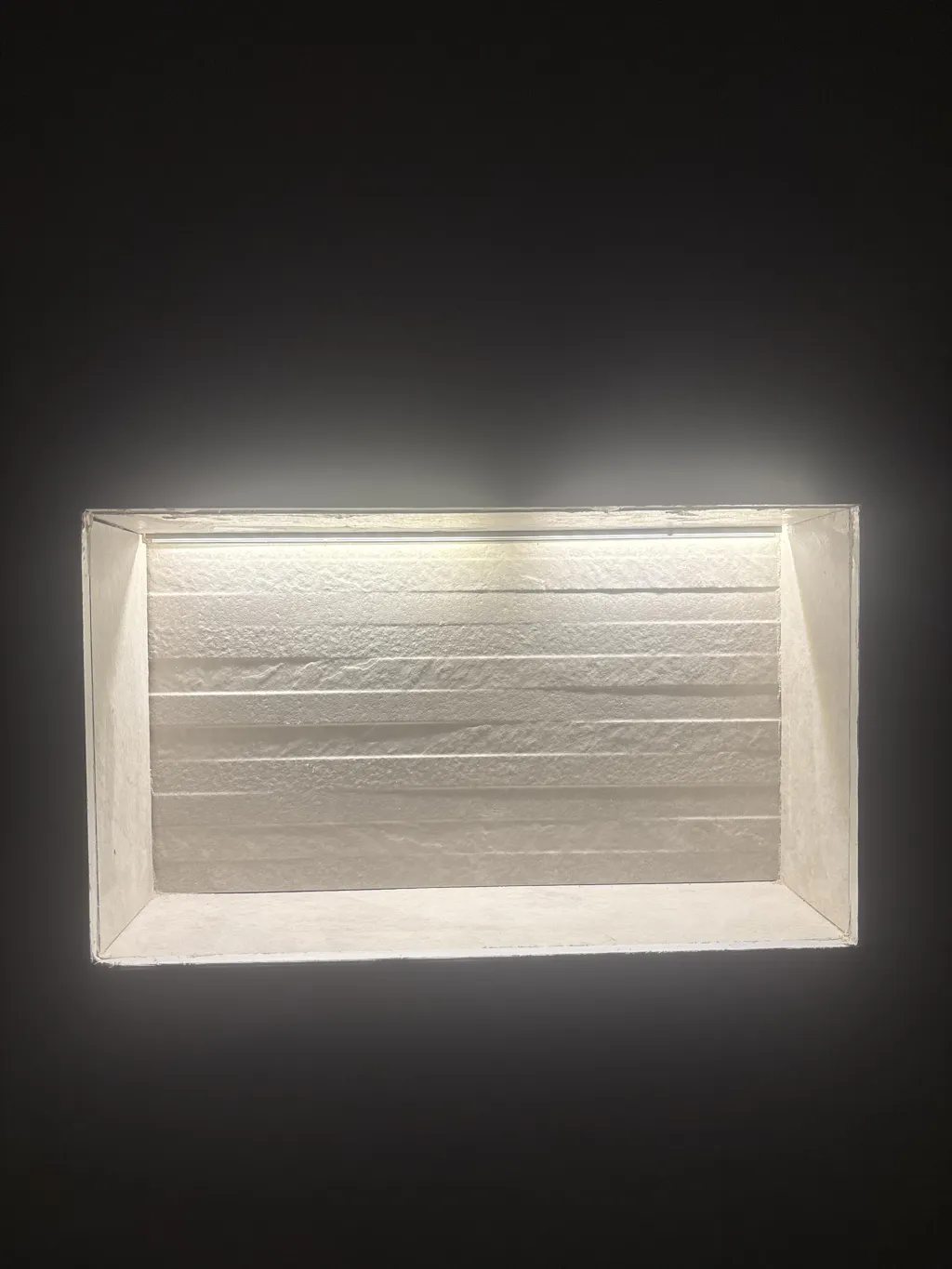

ALU34 creates a line of light at a tile edge or within a tiled niche. Its flange sits beneath the surrounding finish while the diffuser remains visible.

One 1m aluminium profile channel; One 1m diffuser; 2 end caps (1 blank, 1 slotted).

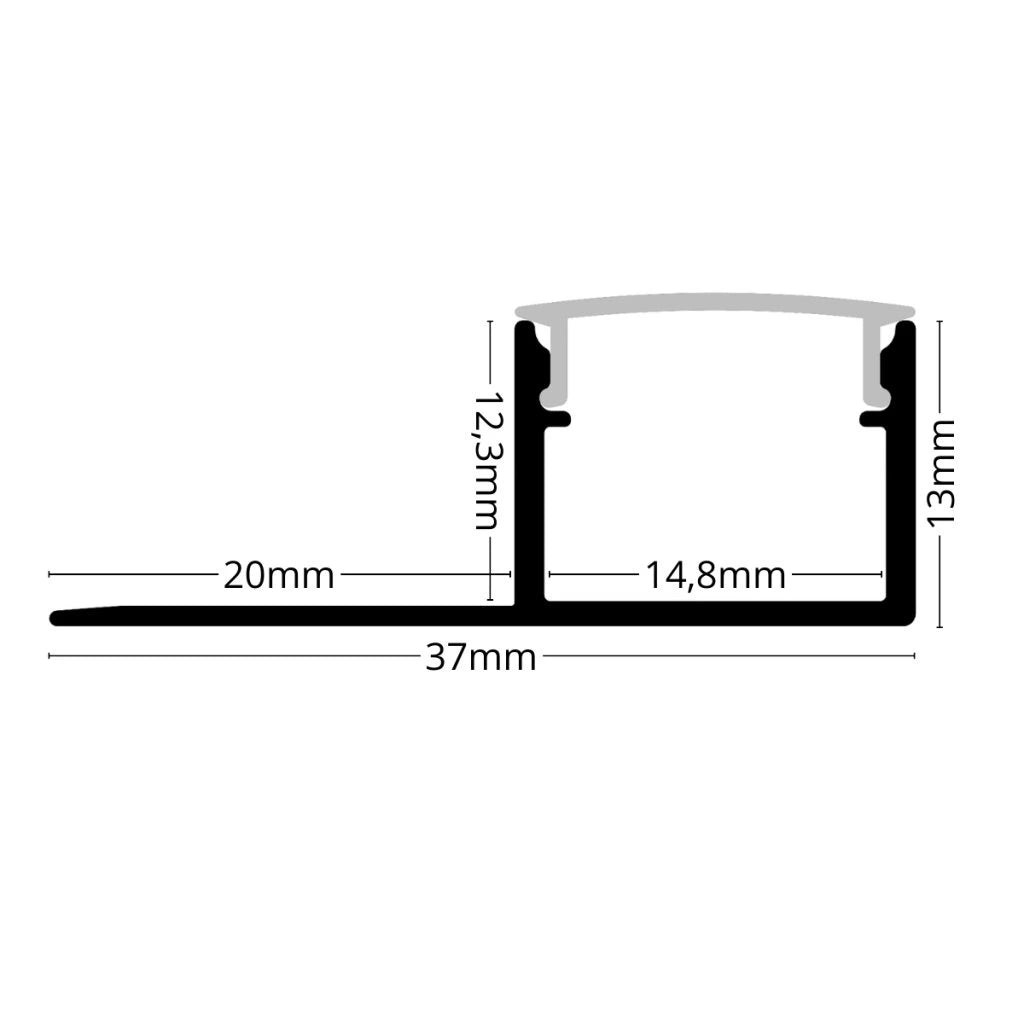

The nominal cross-section is 37 x 13mm, with a 14.8mm internal channel width. The product gallery contains the dimension drawing.

ALU34 accommodates LED strips up to 14mm wide.

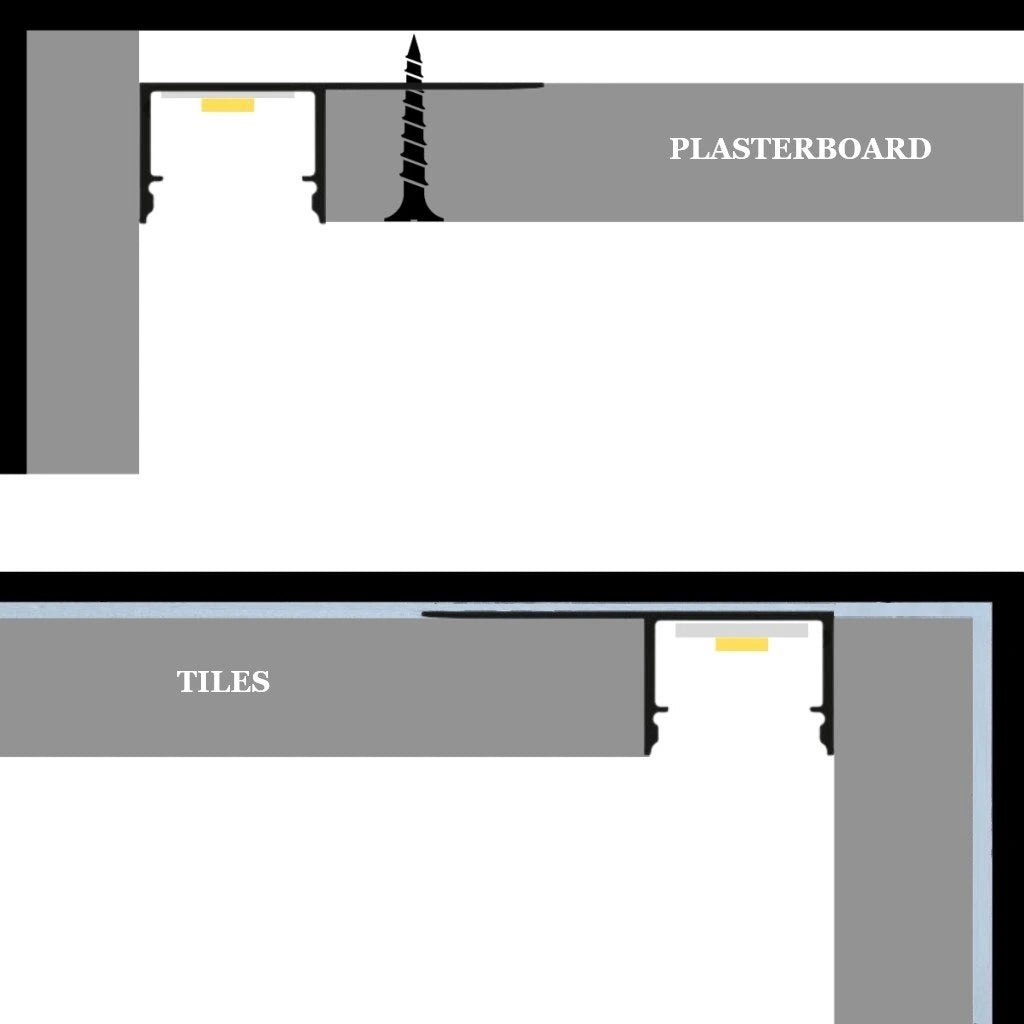

Set the flange beneath the tile edge and align the diffuser face with the intended line of light. Keep the channel clear while fitting the surrounding tiles.

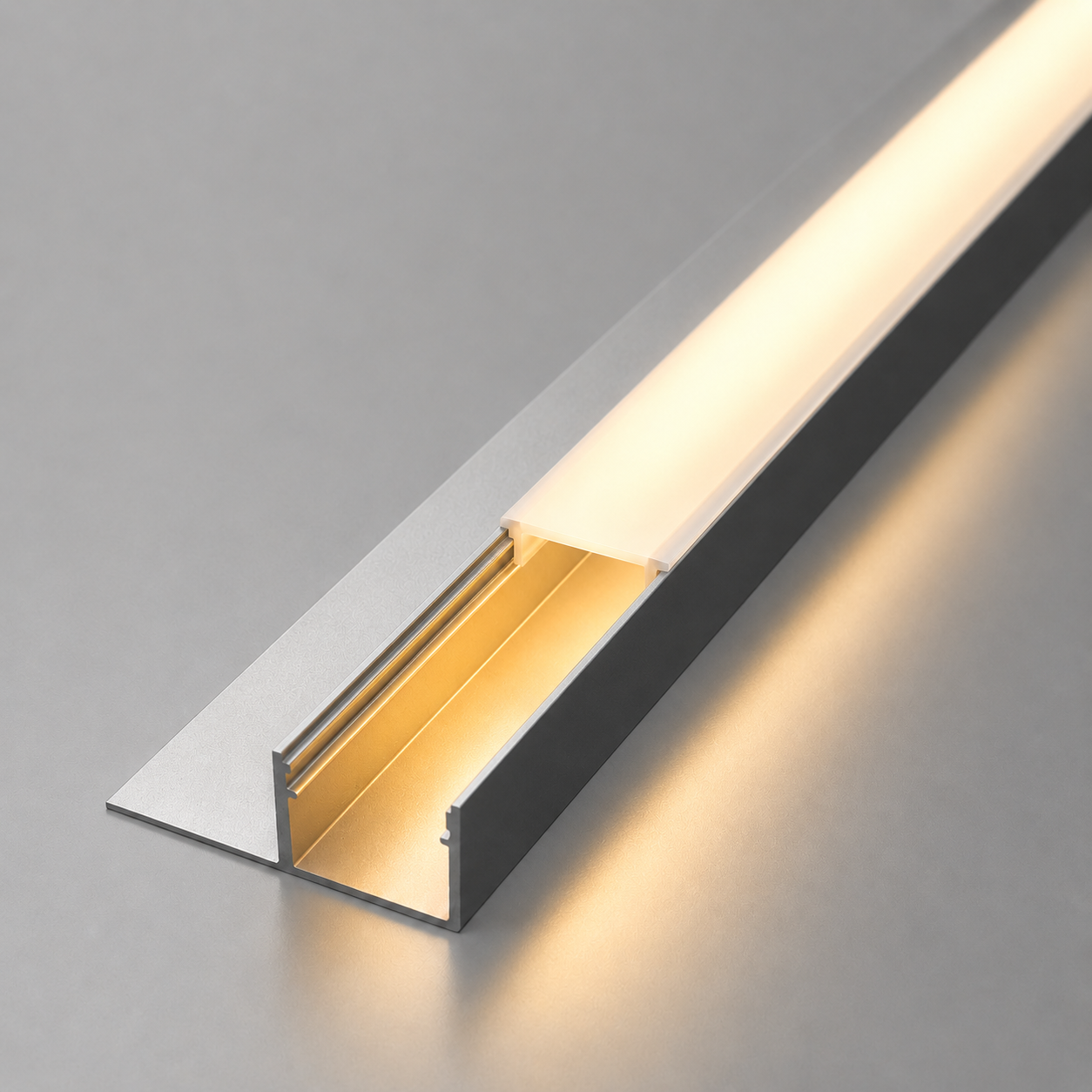

The diffuser softens the light and reduces glare. The final appearance depends on the LED strip and the depth of the profile.

Yes. The aluminium profile can be cut with a suitable hacksaw or aluminium-cutting blade. LEDSpace also offers a profile-cutting service, priced per cut; add your required lengths in the basket notes.

Yes. The light colour, brightness and controls come from the LED strip you fit and its compatible power and control components. Match the strip and its connections to the profile dimensions.
