2m ALU35 Floor Mounted LED Profile, 21.8 x 25.8mm

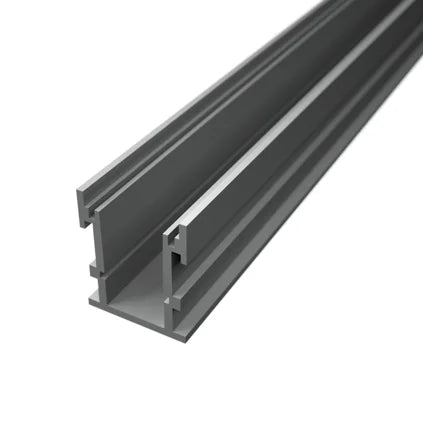

ALU35 is a deep, heavy-duty aluminium profile for floor lighting, supplied with a thick diffuser for walk-over applications.

One 2m aluminium profile channel; One 2m 3mm thick diffuser.

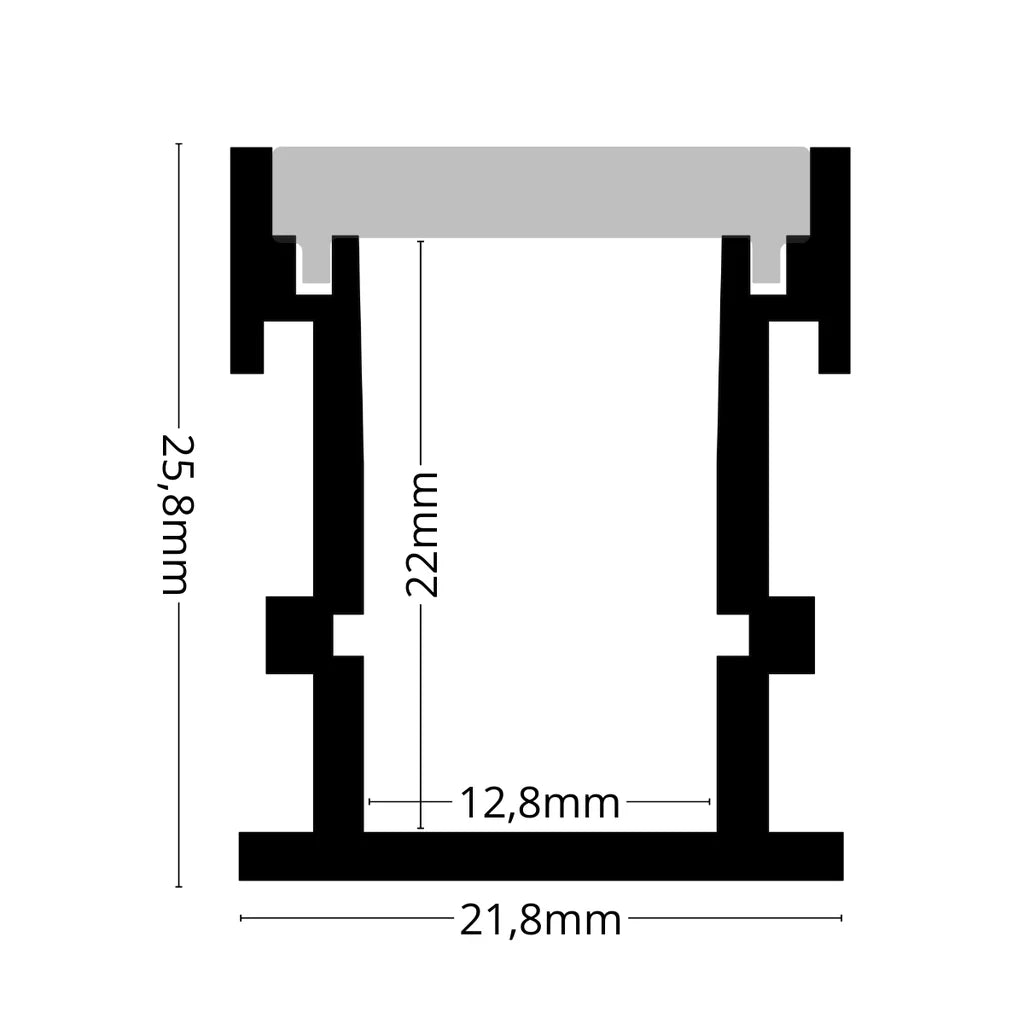

The nominal cross-section is 21.8 x 25.8mm, with a 12.8mm internal channel width. The product gallery contains the dimension drawing.

ALU35 accommodates LED strip sized to fit the 12.8mm internal channel.

Recess the profile into the floor construction with the diffuser at the finished surface. Select the LED strip to suit the internal channel.

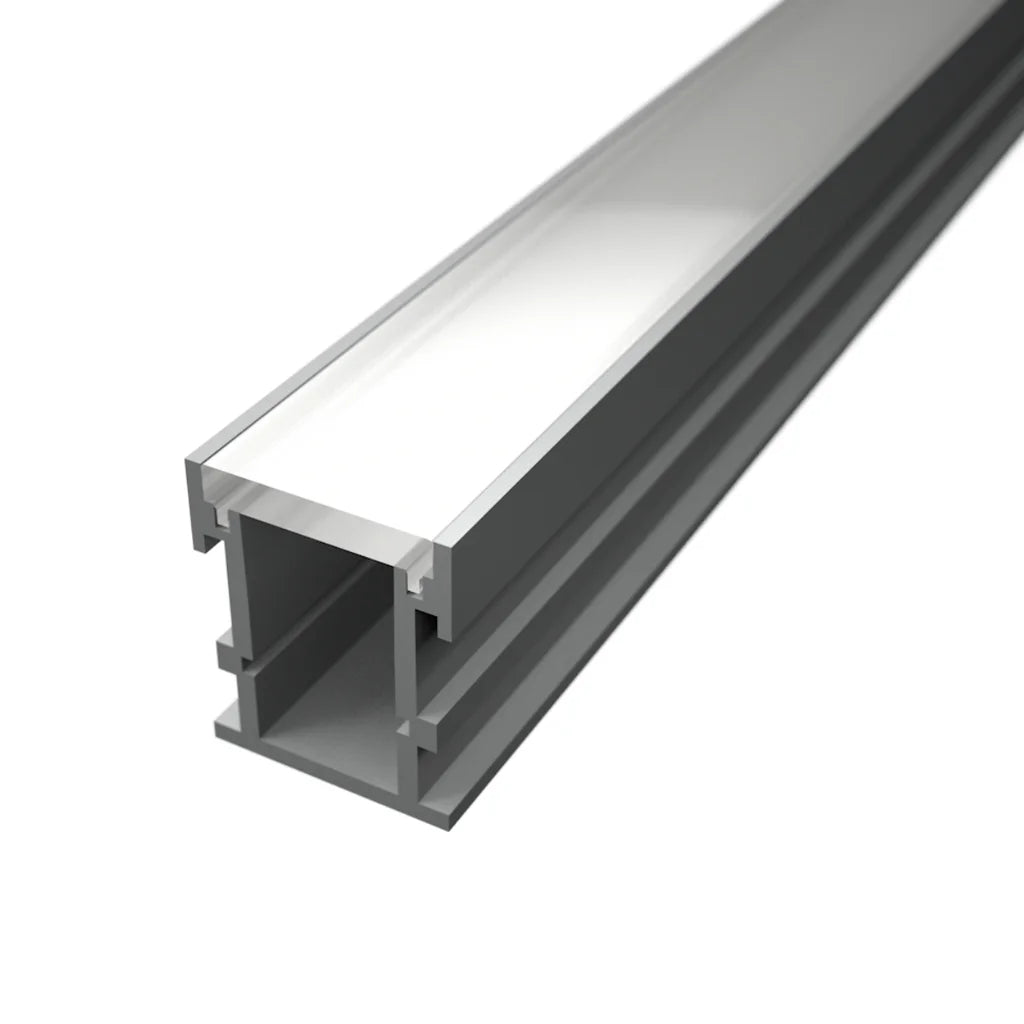

The diffuser softens the light and reduces glare. The final appearance depends on the LED strip and the depth of the profile.

Yes. The aluminium profile can be cut with a suitable hacksaw or aluminium-cutting blade. LEDSpace also offers a profile-cutting service, priced per cut; add your required lengths in the basket notes.

Yes. The light colour, brightness and controls come from the LED strip you fit and its compatible power and control components. Match the strip and its connections to the profile dimensions.
