Professional Housing & Light Diffusion
LED PROFILE
2m ALU33 Floor Mounted LED Profile, 27.06 x 11mm
£23.40
£23.40
(£19.50 Ex VAT)
Availability: 89 units left in stock.
Product Code:
ALU33
Overview

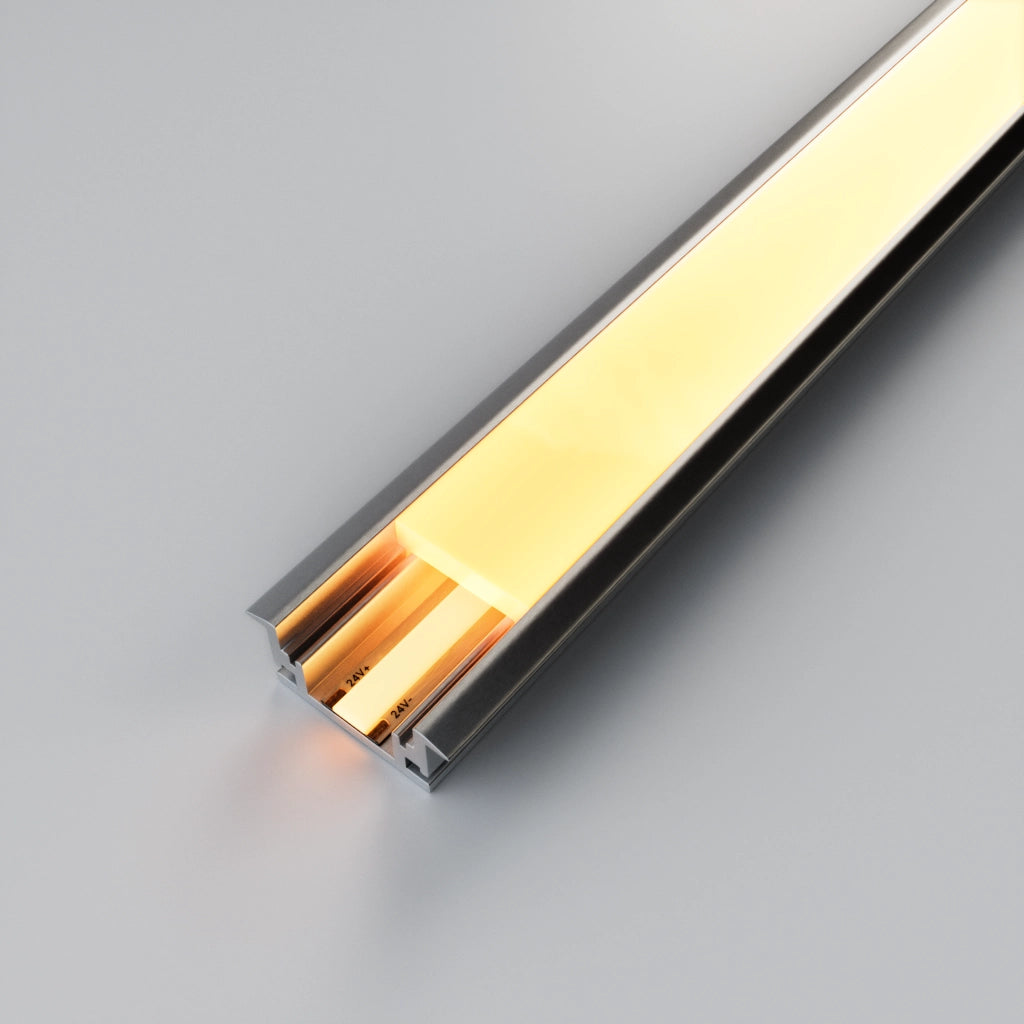

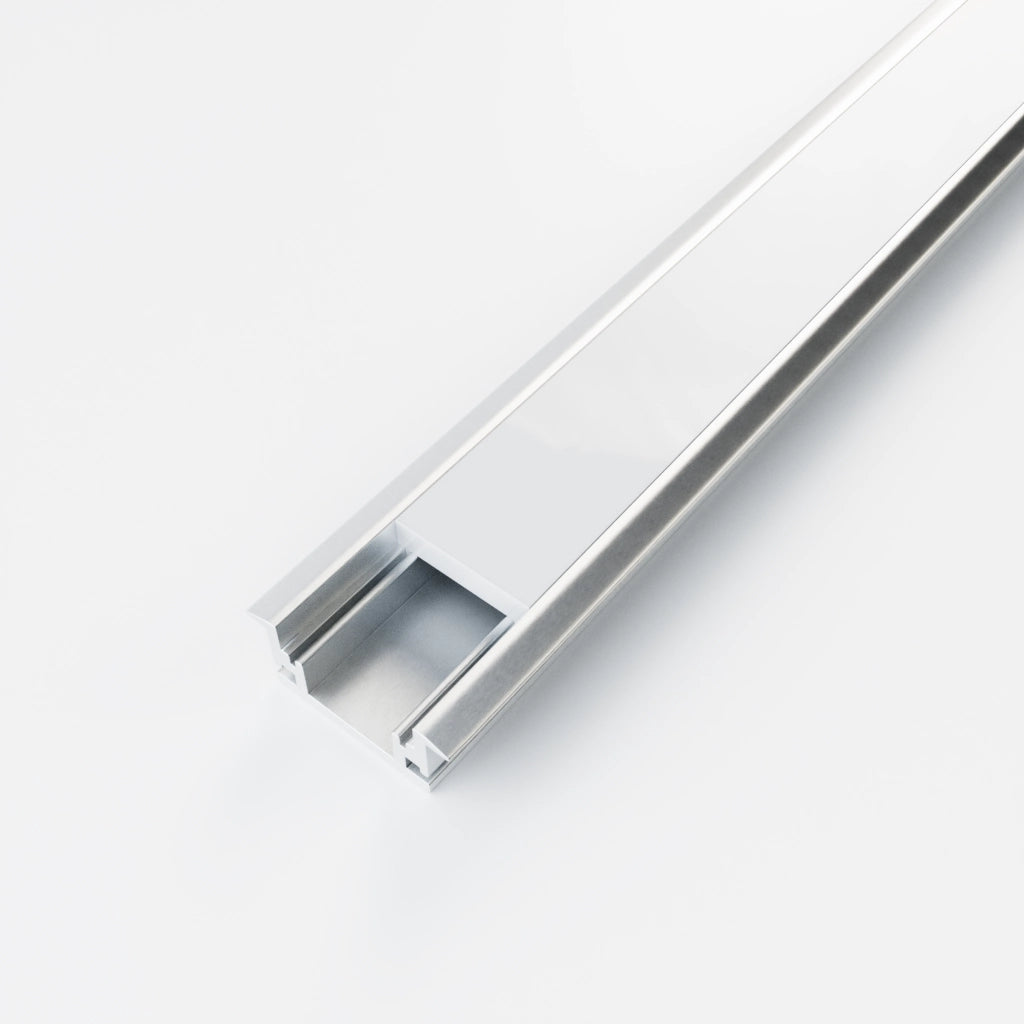

ALU33 is a heavy-duty aluminium profile for floor lighting. Its thick diffuser is designed for regular footfall and its flanges give the floor recess a tidy edge.

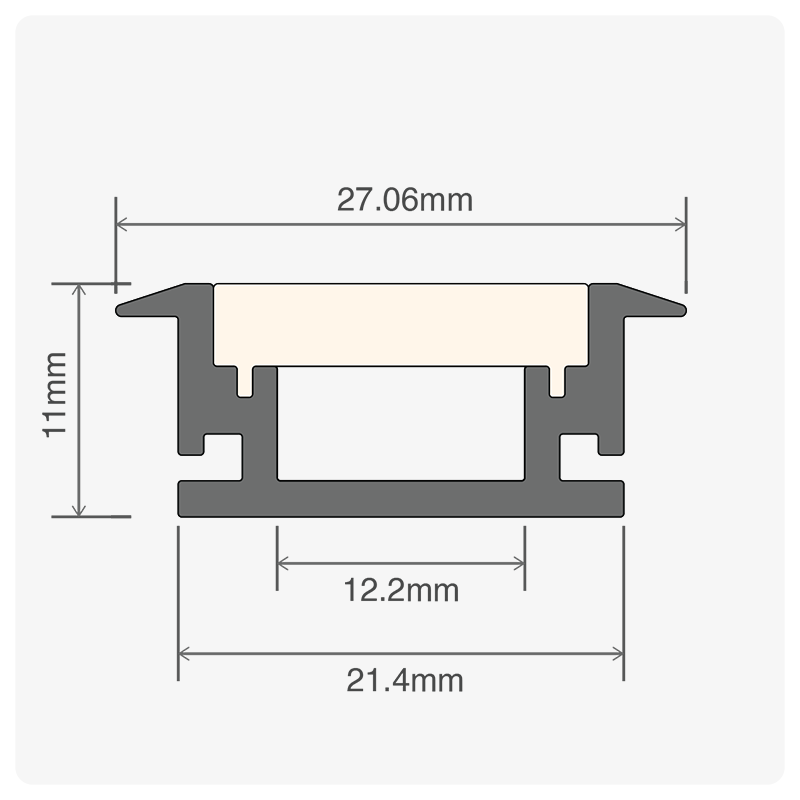

Dimensions & compatibility
- Length per profile: 2000mm (2m)
- Nominal cross-section: 27.06 x 11mm
- Internal channel width: 12.2mm
- LED strip compatibility: LED strips up to 12mm wide
- Profile material: aluminium
- Diffuser: 3mm thick
- Maximum LED strip height: approximately 1.5mm
- Profile IP rating: IP65
Published dimensions are nominal. Extruded profiles are subject to manufacturing tolerances of up to plus or minus 1mm.
What's included
- One 2m aluminium profile channel
- One 2m 3mm thick diffuser
Installation

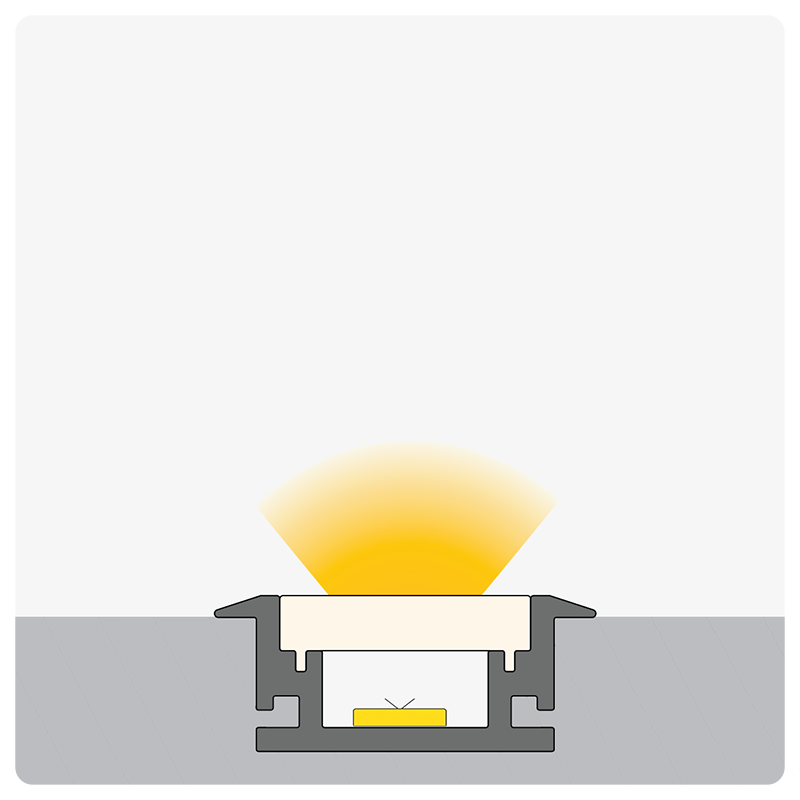

Recess the channel into the floor construction so that the diffuser sits at the finished surface. Fit the LED strip and diffuser, using matching ALU33 end caps to finish the ends.
Accessories
- Blank end cap: closes the channel end.
- Slotted end cap: provides a cable exit at the channel end.
- Cut aluminium to length: our cutting service, priced per cut. Add the required lengths in the basket notes.
