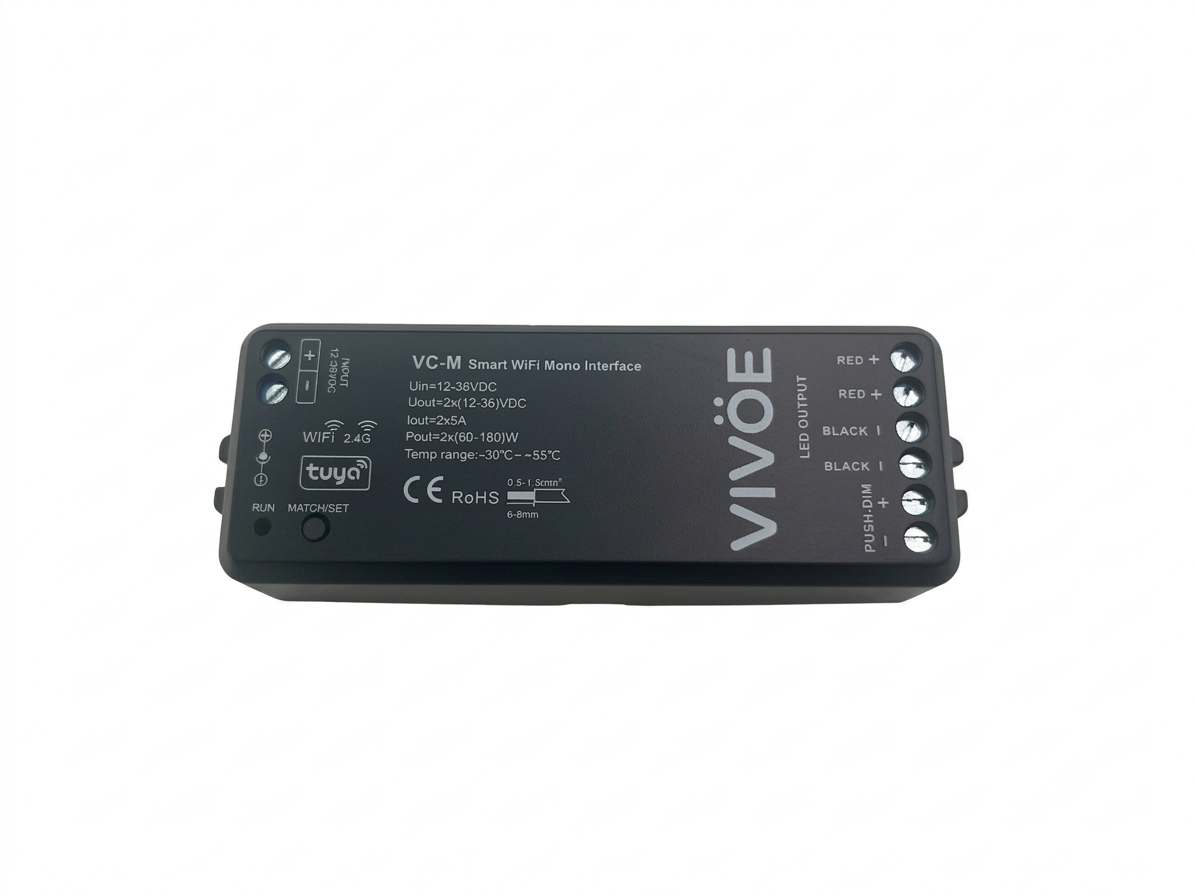

VIVOE Wi-Fi/RF Single-Colour LED Dimming Interface, 12-36V

Overview

A Wi-Fi and RF interface for single-colour LED strip. It connects between a suitable DC power supply and the strip to provide switching and brightness control.

Control & compatibility

• On/off and brightness control
• VIVOE/Tuya app control
• Alexa and Google Home voice control after linking the app
• Scenes through the app

Setup & installation

• Set up the interface in the VIVOE/Tuya app, then link the app to your voice assistant if required.
• Compatible RF remotes and wall panels can be added.

Specifications

• Input: 12-36V DC
• Two outputs, maximum 5A per output
• At 24V: 120W per output, 240W distributed across both outputs
• Dimensions: 114 x 38 x 20mm

Accessories & downloads

• VIVOE app for iOS
• VIVOE app for Android
