TradeStrip Warm White LED Strip, 24V, 3000K, IP67
Overview
Warm White LED strip with 120 LEDs per metre for cabinet, plinth and accent lighting. Its extruded covering protects the strip against water splashes.
Ordering & connections
Order by the metre: quantity 1 = 1m. Supplied as one continuous selected length up to the listed 9m single-run limit.
Use soldered cable connections and the listed waterproof-strip soldering service.
Length with end caps: Sealed end caps add 20mm to the LED cut length in total. A 1,000mm LED strip therefore measures 1,020mm once both end caps are fitted. This allowance applies once to each completed section.
For a 1,000mm space, use a 950mm LED cut length. With sealed end caps, the finished strip measures 970mm. The strip has 50mm cut points, so allow for the end caps before choosing a cut length. The bathroom niche kit builder includes this allowance when calculating the finished length.
Cable for ALU34 niche kits: Use SPLASH12-2CORE 2-core cable for a soldered connection through the current ALU34 end caps. Choose the required cable length and add the appropriate waterproof-strip soldering and sealing service.
Installation & control
Use compatible single-colour 24V control and a suitable DC power supply.
Use the existing waterproof-strip service and installation guidance when preparing cut sections.
Apply the adhesive backing to a clean, dry mounting surface.
Specifications
- Operating voltage: 24V DC
- Power: 9W per metre
- White colour temperature: 3000K
- Cut points: 50mm
- Sealed end-cap allowance: 20mm total per completed section
- Maximum one-end-fed run: 9m
- LED density: 120 LEDs per metre
- Light output: 900 lumens per metre
- CRI: >80
- Adhesive backing: 3M VHB
- Strip IP rating: IP67
- Warranty: 5 years against failure
Accessories & downloads
Add some profile
Customer Reviews

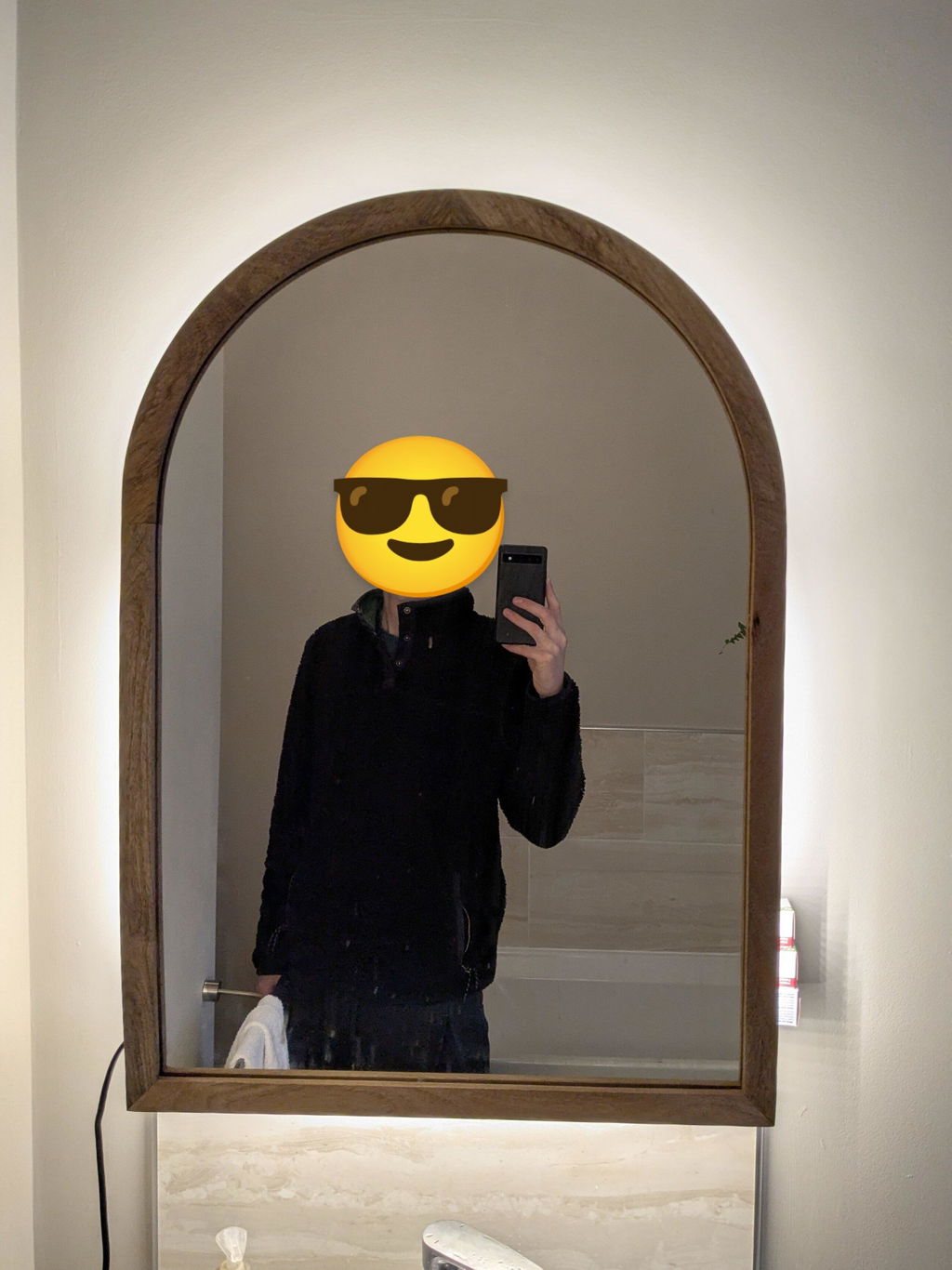

Added 2m to the back of a bathroom mirror to light the wall behind. The 3000K colour is nice, warm but not orange-warm, and quite bright. The adhesive backing seems strong. I soldered my strips together and sealed the ends to keep the IP rating. Handy advice from Dave over email
Really helpful advice via the web chat and email
Easy to install and works fine.
The staff are very helpful and knowledgeable about their products postage was rapid would definitely use again and recommend
Follow and tag us at @LEDSpaceLighting
Product Q&A
-
Are the strips cuttable?
Unfortunately this has to be cut, sealed and soldered by ourselves to ensure your warranty doesn't become void.
-
What is the width of this LED strip? (Product Code: TS120-30-24V-W)
Hi,
That strip is 10mm wide.
