Professional Housing & Light Diffusion
ALU75 Mitred Corner Sections with Diffuser for Plaster In Aluminium Profile
- 24.2mm wide recessed plaster-in LED profile
- Perfectly smooth, flush surface finish
- Supplied complete with an opal diffuser
- Suitable for LED strip lights up to 20mm wide

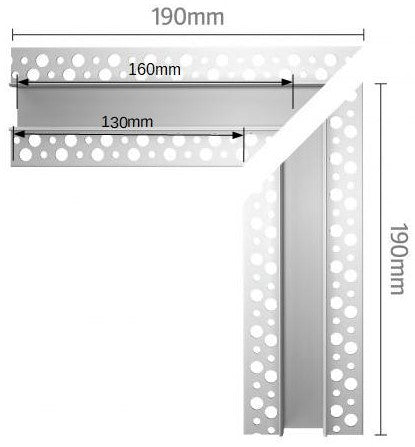

Two pre-mitred sections of the ALU75 profile, each at 150mm external length, Allowing you to create perfect 90 degree turns of the profile without having to dig out the mitre saw
View all:
Product Q&A
-
is the diffuser corner section itself one piece, or two mitred pieces that are joint in situ?
It is 2 pieces that butt up together
-
Hi - do these have to be fixed to wood behind plaster board or can it be fixed directly to plasterboard
These can be face fixed to the plasterboard.
-
How do you connect two strips using this corner profile? The corner connector looks to have a 100mm wire between to the connectors. Where would the excess wire be located in the profile to ensure a seamless corner illumination? I’m looking at the seamless 10 adjusted cct strips
The LED strips are connected either by a soldered corner (which is preferable) or by a solderless connector, the LED strips are then placed as close together as possible with the excess wire simply tucked to one side so it does not cast a shadow.
-
How deep are these, I take it the same as plasterboard 12.5 deep
Hi,
The depth behind the side wings is such that this can be used on a 9mm board upwards, please check out the dimensions on the main porofile page
