Wire CCT (Tunable White) LED Strip to an LED Controller

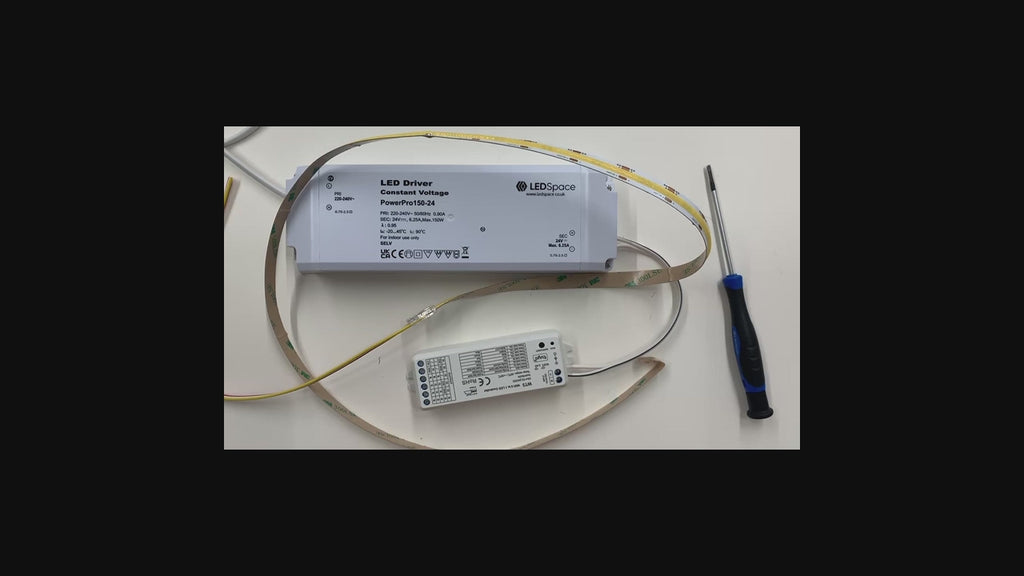

In this video, we demonstrate how to connect a prepared CCT (White Tunable) LED strip to an LEDSpace controller. We guide you through stripping the 3-core cable and wiring it into the correct terminals to ensure full control over both Warm White and Cool White channels.

We cover the following details:

• Cable Preparation: Stripping the insulation and splitting the three wires (Red, White, Yellow) to ensure flexibility and a clean connection.
• Wiring the Interface: Red Wire: Connects to the Positive (+) terminal. Yellow Wire: Connects to the WW (Warm White) terminal. White Wire: Connects to the CW (Cool White) terminal (sometimes shared/labeled as G/Green on multi-purpose controllers).
• Terminal Management: Tips on overlapping wires or splitting them further to reach the correct ports without strain, and troubleshooting tight terminals.
• Final Check: Confirming the interface indicator light is set to Yellow to enable CCT functionality.

Technical Tip: On some multi-purpose controllers, the terminals share labels (e.g., the CW terminal might also be labeled 'G'). Always follow the specific CW/WW markings when wiring for Tunable White.

Tools used:

• Wire strippers
• Slot-headed screwdriver
