9m Cool White LED Strip Pack with Multi Zone Switch

What's in the box

Everything you need to make a fully operating LED strip lighting system with full control via a smart touch panel wall switch, with 4 zones, 3 scenes and full dimming.

A free-to-download app also allows full voice control using smart speakers from Amazon and Google as well as via your smartphone.

Solder-free connectors and cable allow you to make links or corner cables for further flexibility.

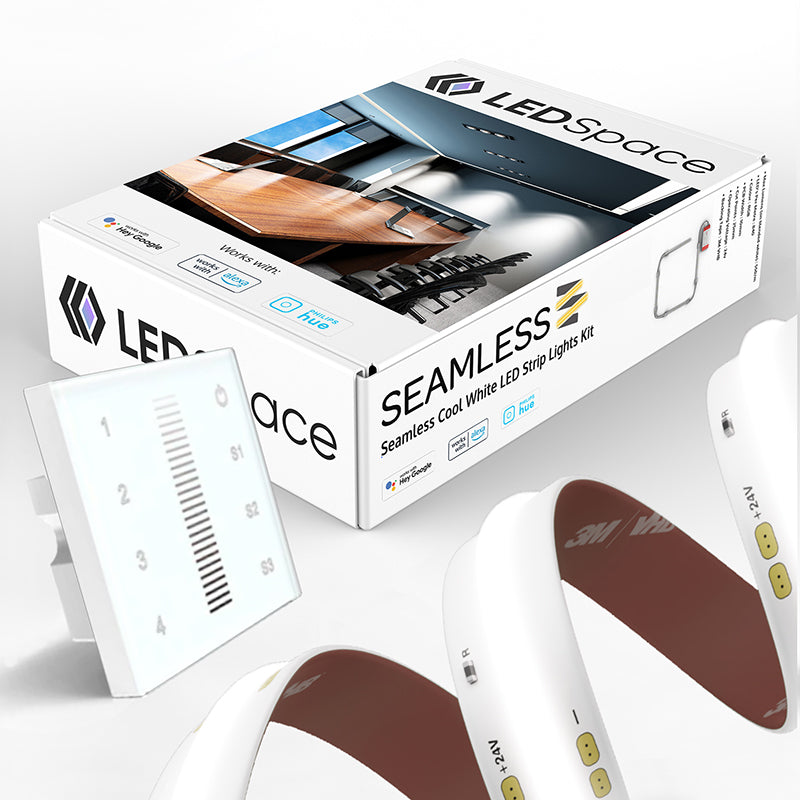

Your pack contains

• 9-metre length, Seamless cool white LED strip

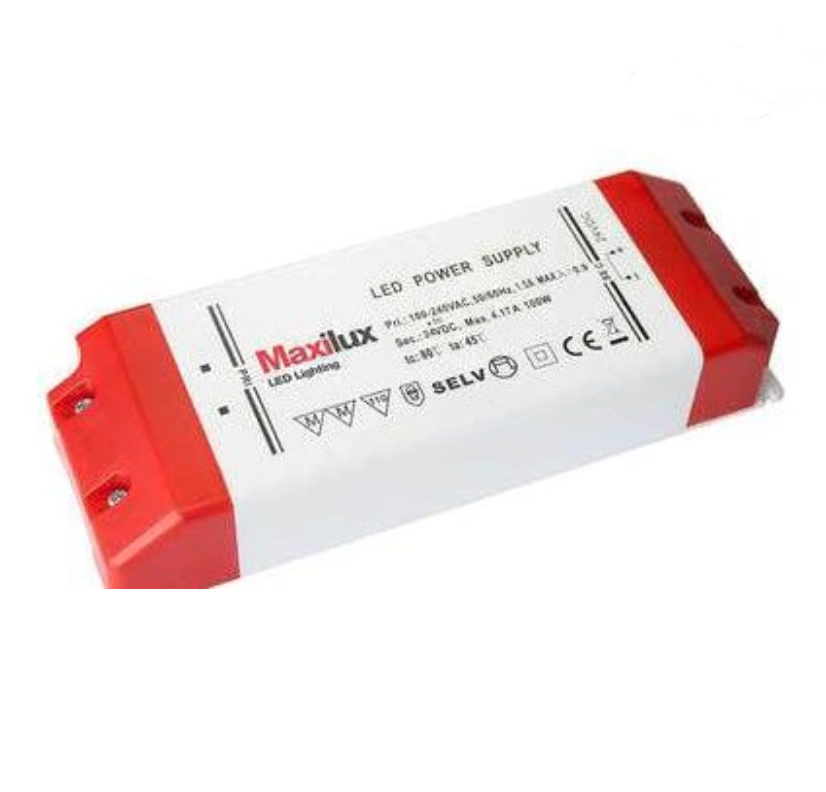

• Maxilux 150w LED power supply

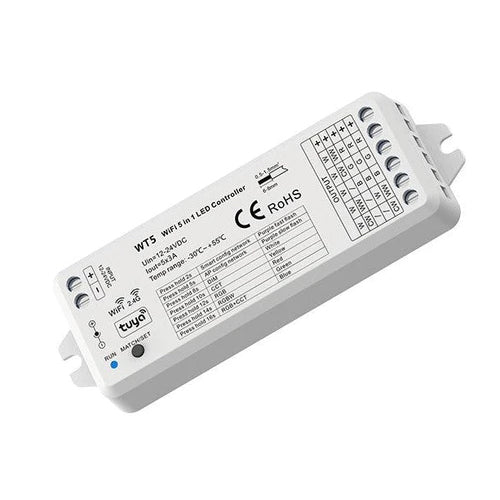

• Maxilux Wi-Fi/RF interface

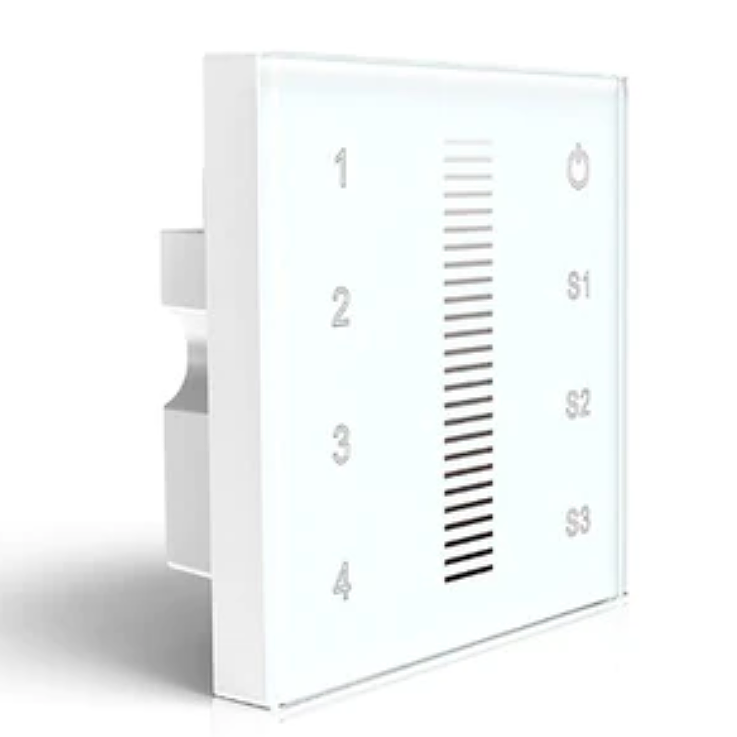

• smart touch panel wall switch with 4 zones and 3 scenes
• connector pack containing 7 solder-free connectors and 3 metres of cable
• UK Plug with 2m cable

Description

9-metre pack: complete with Seamless LED strip, power supply, Wi-Fi/RF interface, smart touch panel wall switch, cable and connectors It also works using voice control with Amazon and Google smart speakers, or you can use the app on your smartphone.

A complete solution: created by us to make it easy for you.

This ready-made LED lighting pack is perfect for DIY installation. It is supplied with 9 metres of our Seamless LED Strip, a 3-metre cable with seven quick and easy, solder-free connectors to make power cables and corner connector cables, allowing you to easily and safely connect to the power supply and interface which are also included. The LED strip operates at just 24 volts, is safe to touch and consumes no more than 9 watts of electricity per metre.

Cut to fit: The 8mm strip can be cut anywhere along its continuous, zinc-protected copper layer, so you can make precise cuts without fixed cut points.

Powering the 9-metre strip: The maximum recommended run when powered from one end is 8 metres. For this 9-metre pack, supply power at both ends or feed power into the centre of the strip to reduce voltage drop and help maintain even light output.

Seamless.And we mean seamless! Do you want continuous and even illumination along the whole length of your lighting, with absolutely no spotting? That’s what you get in this pack. It is the same high-quality, no-spotting LED strip light that thousands of satisfied customers have already purchased from us, but this time it’s in a convenient pack with all the other components you’ll need for a fully functioning LED lighting design.

Our LED strips are made using the very latest manufacturing techniques, giving you a massive 480 LEDs per metre, with no need for a diffuser.

The strip comes with 3M 300LSE adhesive backing for hassle-free installation directly to the wall, ceiling, under-shelf or other surfaces.

If you would like to add an optional aluminium housing profile to your LED lighting design, the 8mm-wide LED strip can be used in most of these.

This complete, one-pack solution will help you transform your space with the light you want. It includes the power supply/transformer, Wi-Fi/RF dimming Interface, smart touch panel wall switch, cable, connectors and instructions on how it all easily fits together.

Each individual component in the pack has a 5-year warranty.

LED Strip Specifications

• Wattage: 9W per metre (maximum)
• lumens per metre: 700
• LEDs per metre: 480
• Colour temperature: 6000K
• CRI: >90
• PCB width: 8mm
• Cut points: cut anywhere
• Maximum run length when powered from one end: 8 metres
• operating voltage: 24V
• Backing tape: 3M 300LSE
