Seamless SPLASH5 Cool White LED Strip, 24V, 6000K, IP65
You Must Also include:
The end cap set will already be sealed to your strip from our manufacturing facility, one end cap set is required for each continuous strip required.
These mounting clips are ideal for straight runs or runs around corners, we recommend you have a minimum of 4 per metre of strip.
This charge is for our in house experts to solder the cable to your strip, each strip would require a cable tail (1 solder) any sharp 90 degree corners required will need a cable in between (2 solders)
We can add a cable tail to your strip at any length you wish up to 10 metres, please add the total metres of cable you require for all strips.
Now choose the power supply based on the total length of your strip(s)
This power supply will power up to 10 metres of the Splash5 strip
This power supply will power up to 20 metres of the Splash5 strip
This power supply will power up to 30 metres of the Splash5 strip
Product Description
Overview

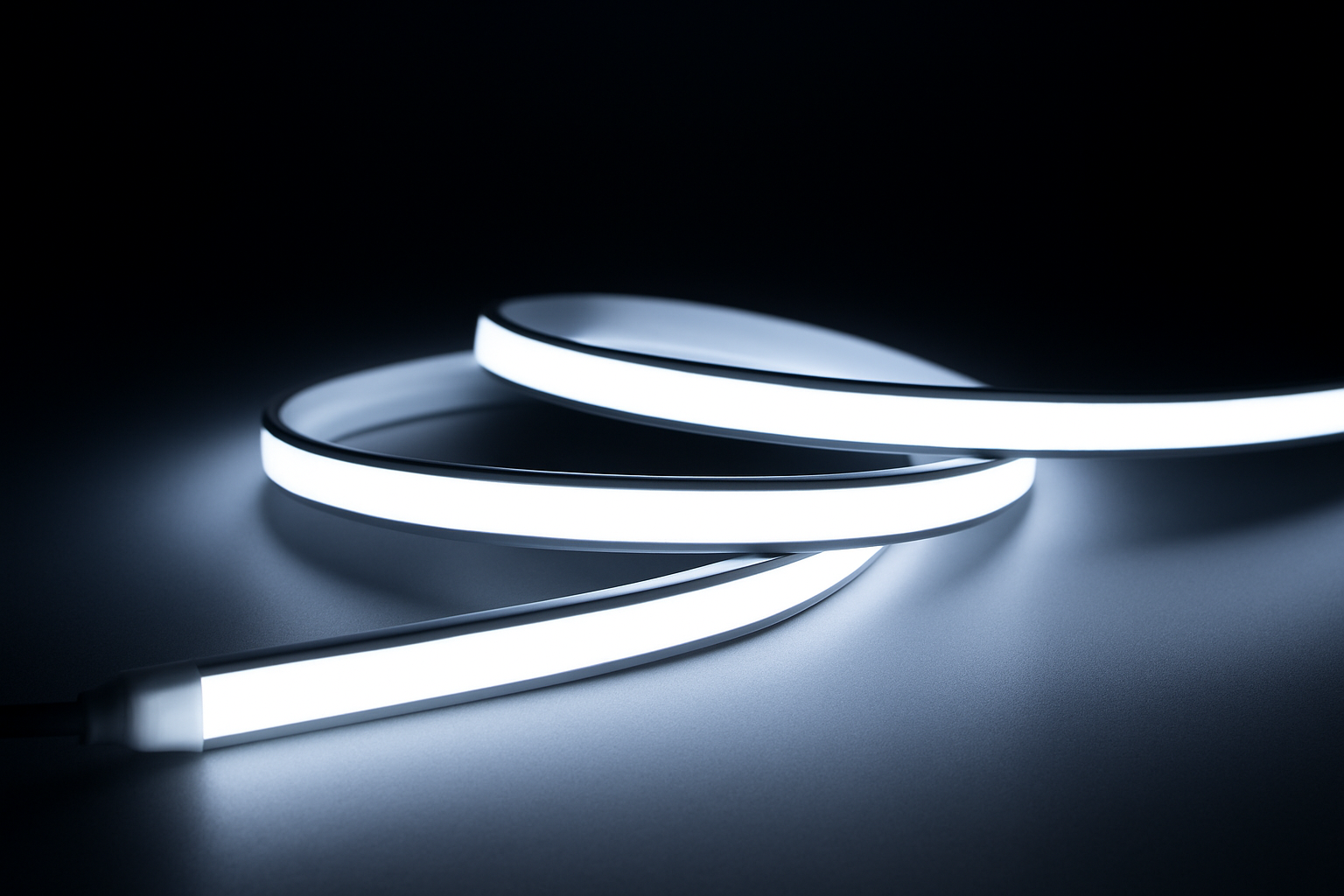

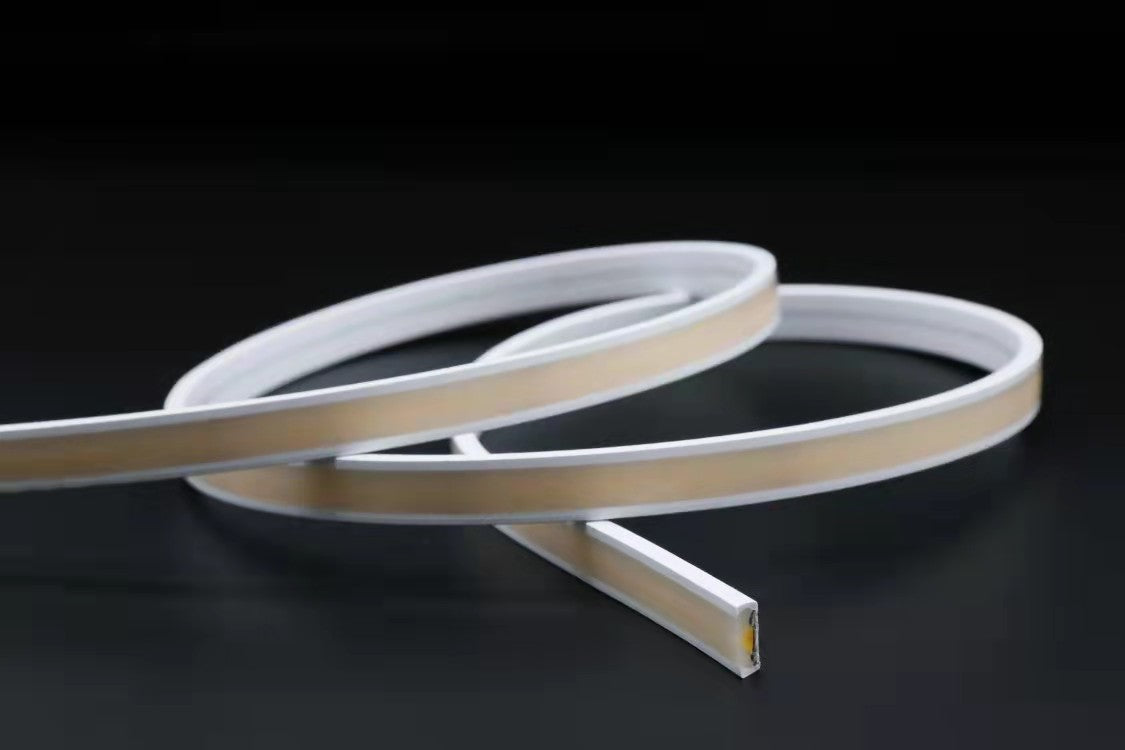

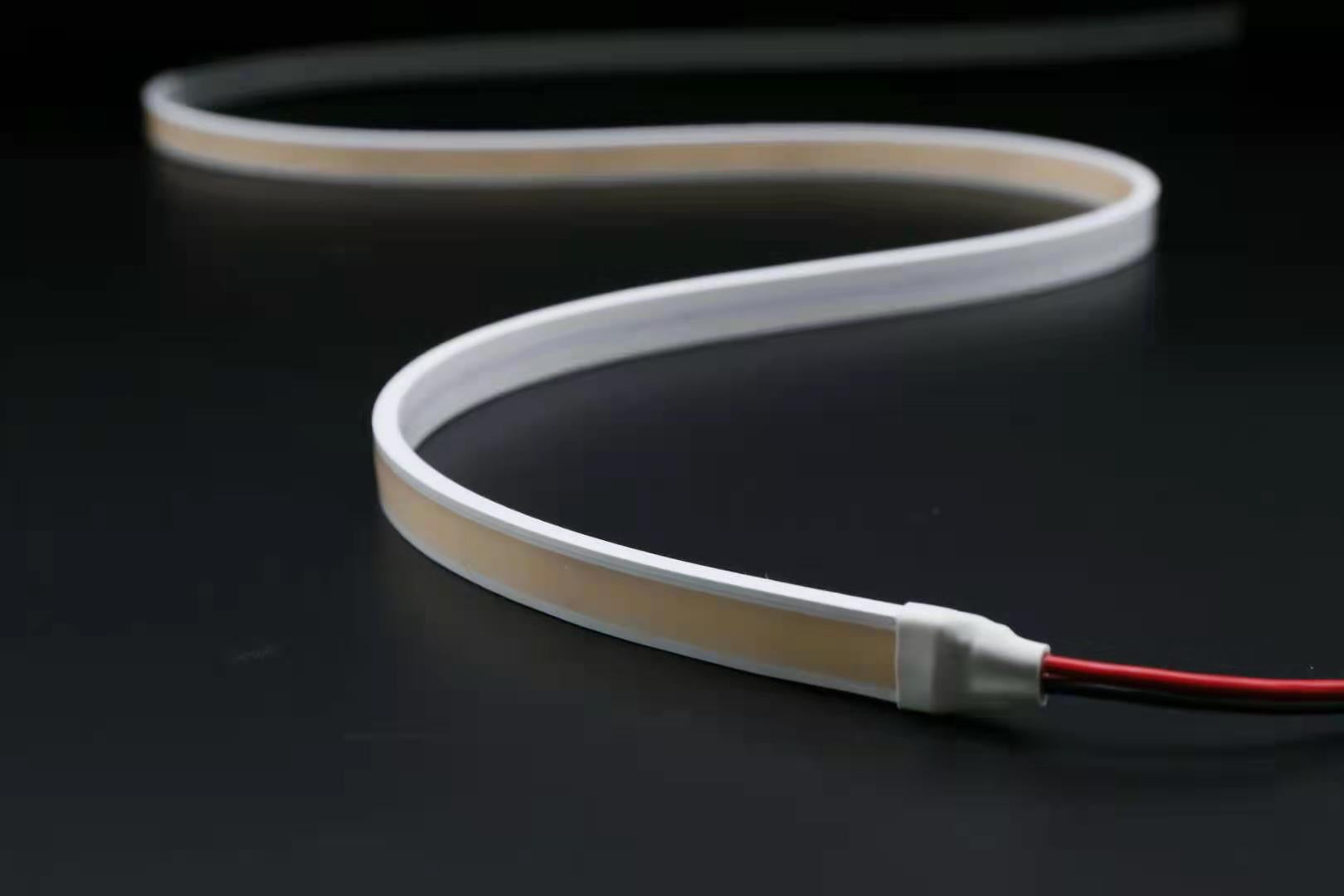

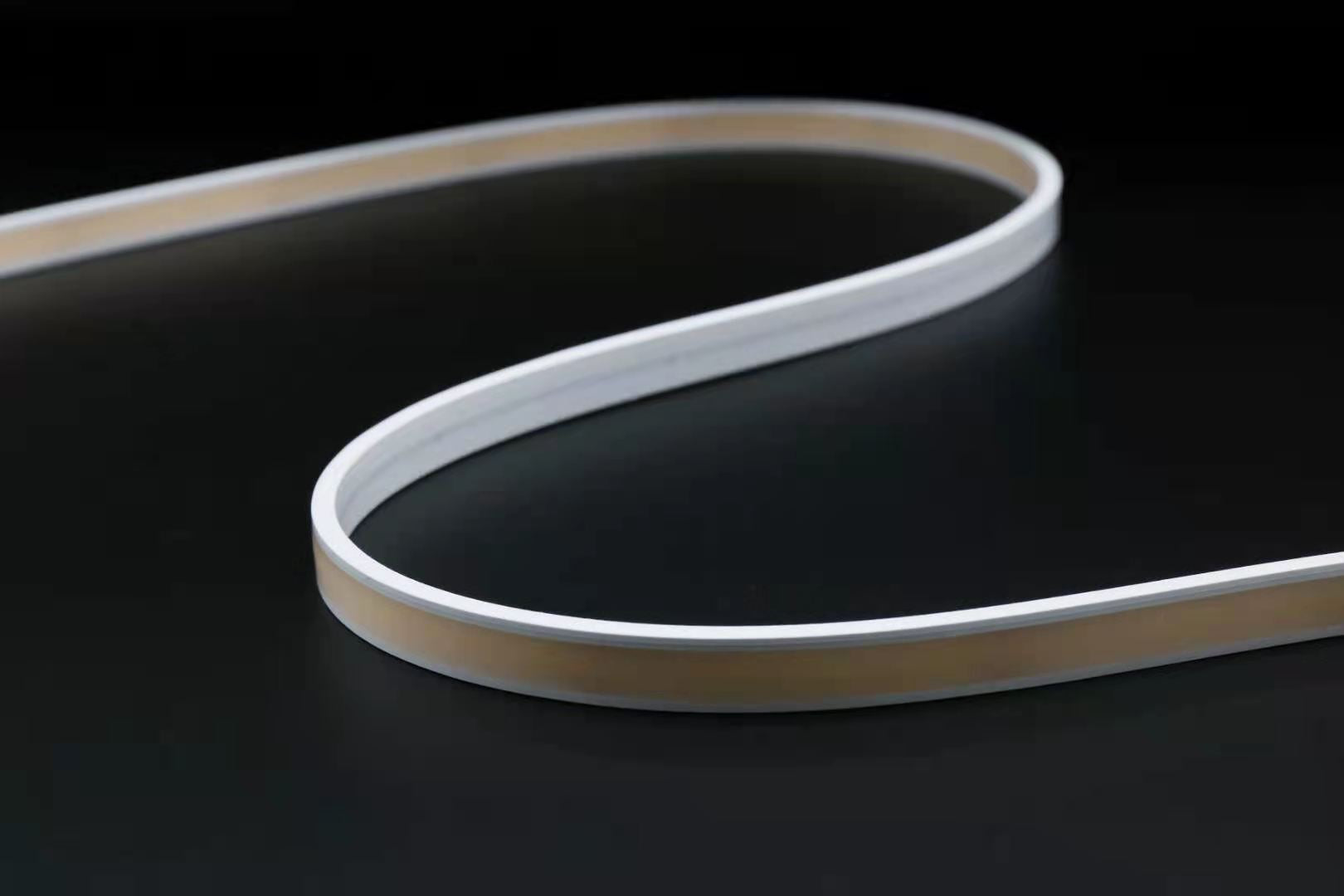

Compact cool white strip with a continuous, dot-free emitting surface. Its 10mm by 5mm housing provides IP65 splash protection for discreet indoor and outdoor lighting.
Ordering & connections
Order by the metre: quantity 1 = 1m. Supplied as one continuous selected length up to the 7m one-end run limit.
Choose the listed SPLASH5 connection and end-cap service with the required cable length.
Length with end caps: Sealed end caps add 15mm to the LED cut length in total. A 1,000mm LED strip therefore measures 1,015mm once both end caps are fitted. This allowance applies once to each completed section.
For a 1,000mm space, use a 950mm LED cut length. With sealed end caps, the finished strip measures 965mm. The strip has 50mm cut points, so allow for the end caps before choosing a cut length. The bathroom niche kit builder includes this allowance when calculating the finished length.

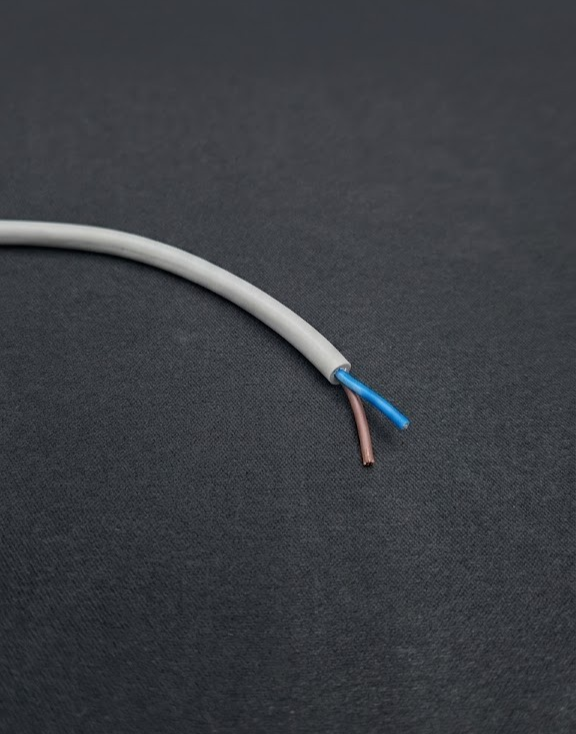

Cable for ALU34 niche kits: Use SPLASH12-2CORE 2-core cable for a soldered connection through the current ALU34 end caps. Choose the required cable length and add the appropriate waterproof-strip soldering and sealing service.
Installation & control
For a prepared strip, add the required cable, end caps and soldering/sealing service.
Use suitable 24V DC power and compatible single-colour control.
Specifications
- Operating voltage: 24V DC
- Power: 9W per metre
- White colour temperature: 6000K
- Strip width: 10mm
- Strip height: 5mm
- Cut points: 50mm
- Sealed end-cap allowance: 15mm total per completed section
- Maximum one-end-fed run: 7m
- Strip IP rating: IP65
Accessories & downloads
FAQ
Specification & technical documents
Additional graphics & inspiration
Product ratings & reviews
Customer Reviews

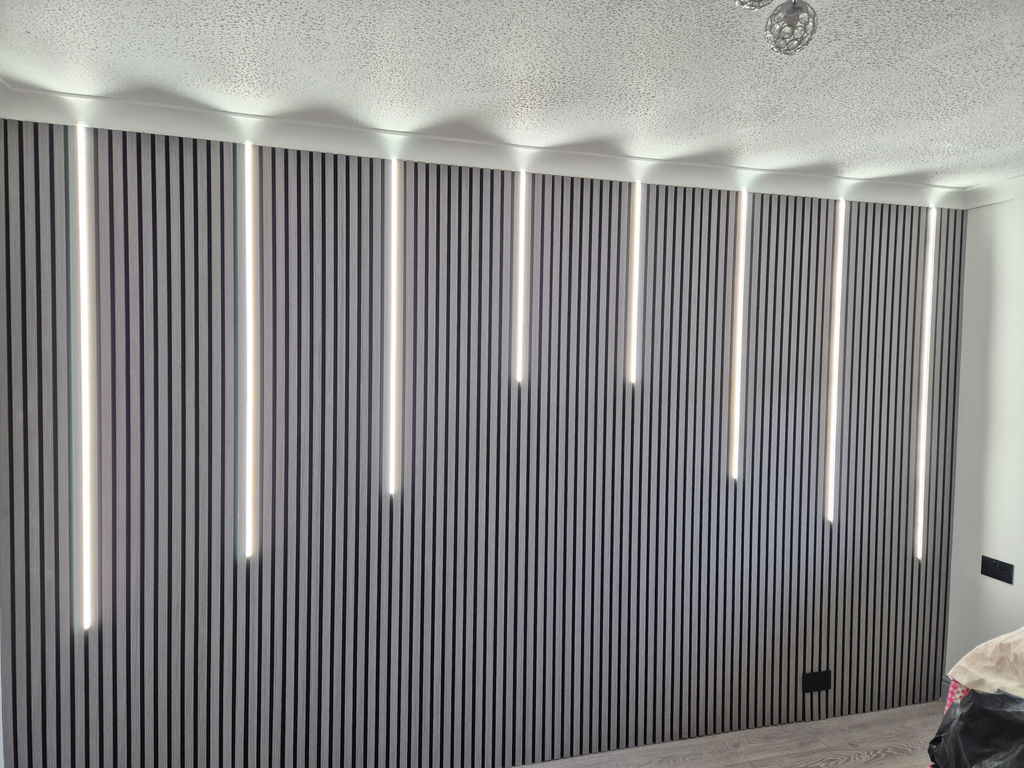

Loving my lights. Looks good in my new acustic wall panelling. Got in touch with company who sorted the lighting into the lengths I wanted then connectors added all sorted & ready to go making it easy for the electrition to connect. I had a problem with one of the strips I got back in touch with the company who sorted everything out & got new strip within a few days. Great experience with Ledspace.
Fabulous. My electrician was very impressed and would use it on all is jobs going forward for customers that want strip lighting.
Very stylish product.
Great service and products. Fast delivery too
Very pleased

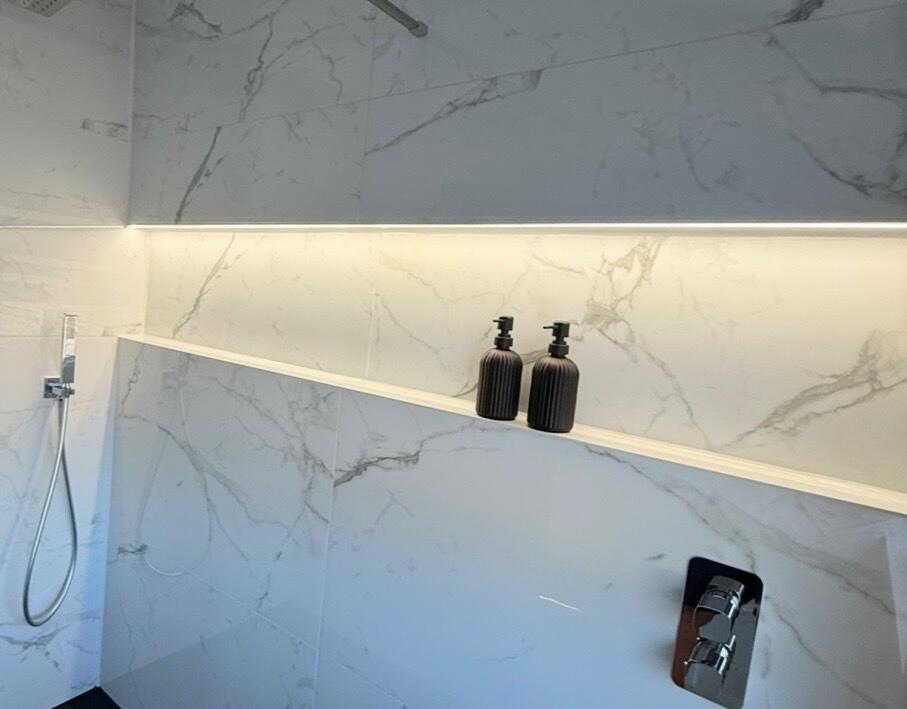

Really pleased with the lighting, it has transformed my bathroom which is an awkward shape and difficult to light.
